Flowline

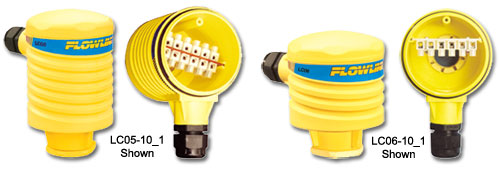

Compact Junction Box




Application
Offered in small and large sizes, the junction box is ideal for compact sensor wiring and conduit termination. The junction box is universally compatible with our level switch, flow switch and fitting products. The small enclosure has 6 poles and is typically applied with a single level or flow switch sensor. The large enclosure has 12 poles for multiple level switches and is typically applied with Smart Trak. Select the size and appropriate mounting thread.
Features
PP enclosure rated NEMA 4X with 300° conduit swivel base
Compatible with Flowline sensors, installation fittings and alarms
Removable terminal strips with upper and lower screw poles
Offered in large and small sizes for single and multi-point installations
Specifications
Sensor inputs:
LC05: 1-4 sensors
LC06: 1-2 sensors
Terminal strip:
LC05: 12 poles
LC06: 6 poles
Enclosure rating:
NEMA 4X (IP65)
Enclosure material:
PP (UL94VO)
Enclosure mount:
1001: 3/4" NPT
1051: 3/4" Rp
Enclosure rotation:
300° swivel base
Conduit entrance:
Single, 1/2" NPT
Temp. rating:
F: -40° to 158°
C: -40° to 70°

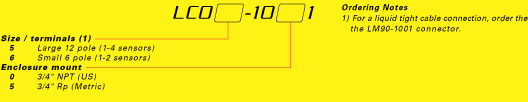

Order
