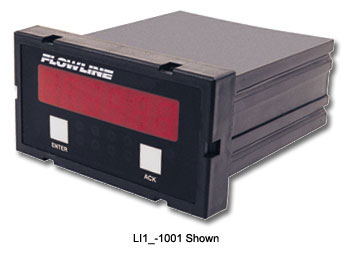

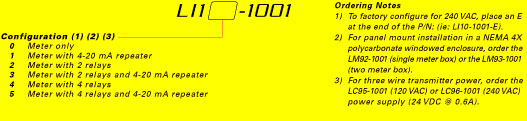

| The general purpose meter reads engineering units with one level transmitter input channel and is offered in six configurations with optional 2 or 4 relays, 4 or 8 set points and an isolated 4-20 mA repeater. Each relay can be configured on a single set point or two latched set points for automatic fill or empty control. |
|
|
4.5 digit LED display indicates level in custom engineering units |
|
11-point linearization function for volumetric tank measurement |
|
Fail-safe design with security lock out jumper for process safety |
|
1/8 DIN polycarbonate enclosure with NEMA 4X faceplate |
|
| Tech Tip |
| For three-wire transmitters, package the meter with our external power supply rated 24 VDC @ 0.6A. The rail mounted power supply can support up to three LU30 level transmitters. |
 |
|
|
Specifications |
|
Display type: |
LED, 4.5 digit |
|
Display units: |
Engineering |
|
Display output: |
0-199990 |
|
Input channel: |
(1) 4-20 mA |
|
Supply voltage: |
120/240 VAC, 50-60 Hz. |
|
Memory: |
Non-volatile |
|
Sensor supply: |
24 VDC @ 25 mA |
|
Repeater output: |
4-20 mA, 24-36 VDC |
|
Contact type: |
LI12/13: (2) SPDT relays
LI14/15: (4) SPDT relays |
|
Contact rating: |
250 VAC @ 2A |
|
Contact output: |
Selectable NO/NC |
|
Contact mode: |
Alarm, latched |
|
Operating temp: |
F: -40° to 149°
C: -40° to 65° |
|
Enclosure type: |
1/8 DIN |
|
Enclosure rating: |
NEMA 4X (IP65) faceplate |
|
Enclosure material: |
Polycarbonate |
|
Classification: |
General purpose |
|
|
 |
