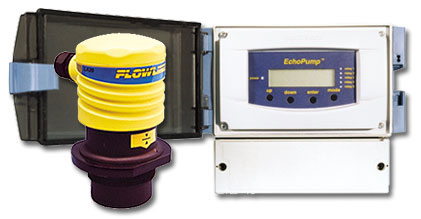

| The general purpose ultrasonic controller provides non-contact level measurement up to 33' or 10m with advanced display, tank shape linearization and control functions with 5 relays. Each relay can be configured as a single set point alarm, two latched set points for automatic fill or empty control or two independent set points for out of bounds alarming. Additionally, latched relay pairs can be configured for duplexing pump control.The sensor is ideally suited for challenging corrosive, slurry or waste liquids and is typically selected for atmospheric bulk storage and waste pump transfer application. Media examples include sodium hypochlorite and wastewater. |
|
| Features |
- LCD digital display indicates level in distance or volumetric units
- Isolated 4-20 mA repeater output for integration with remote PLC
- Polycarbonate NEMA 4X enclosure with rugged PVDF transducer
- 16-point linearization function for volumetric tank measurement
- Fail-safe intelligence and relay logic for maximum process safety
|
|
|
Specifications |
|
Range: |
6" to 33' (15cm to 10m) |
|
Accuracy: |
± 0.25% of span in air |
|
Display type: |
LCD, 2-line, 16-digit |
|
Display units: |
Distance or volume |
|
Calibration: |
Push button |
|
Linearization: |
2-16 points |
|
Beam width: |
8° conical |
|
Dead band: |
6" (15cm) |
|
Process temp: |
F: -4° to 140°
C: -20° to 60° |
|
Pressure: |
30 psi (2 bar) |
|
Conduit: |
1/2" NPT |
|
Enclosure rating: |
NEMA 4X (IP65) |
|
Process mount: |
2" NPT (2" G) |
|
Supply voltage: |
120/240 VAC, 50-60 Hz. |
|
Signal output: |
4-20 mA, two-wire |
|
Contact type: |
(5) SPDT relay, 250 VAC, 10A |
|
LED indication: |
Power & relay status |
|
Enclosure mat: |
Polycarbonate FR |
|
Trans. material: |
PVDF |
|
Trans. cable length: |
150' (48m) maximum |
|
Classification: |
General purpose |
|
|
