Seametrics

FT-520

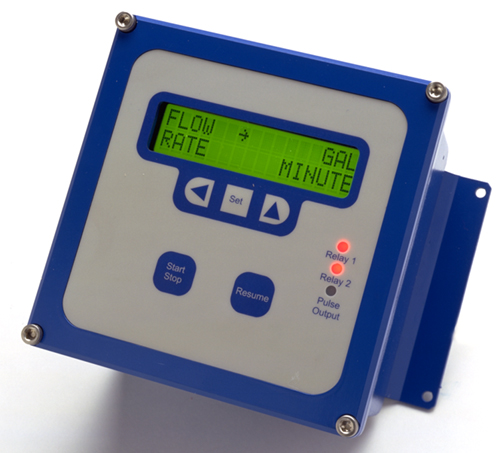

Batching flow processor with additional outputsSeametrics FT-520

» Large backlit alphanumeric display
» Built-in 4-20 mA analog output
» User-scaled pulse output for chemical metering pumps or telemetry
» Two relay outputs for staged shutoff (batching) or dual setpoints (alarm option)
» Rugged cast aluminum housing » Wall or panel mounting

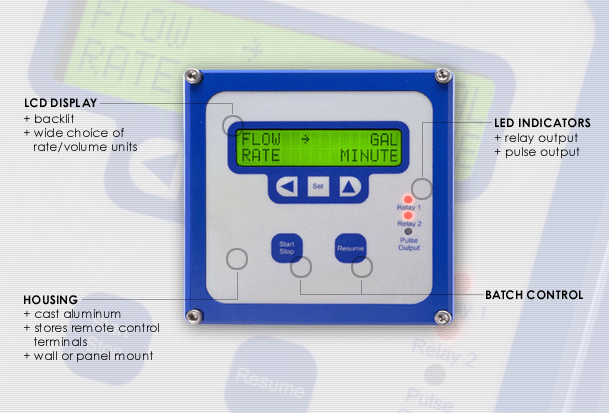

Features

FT-520


Specifications

Power 115/220 VAC, 50/60 Hz, 12 to 24 VDC
Temperature 32° to 130°F (0° to 55°C)
Enclosure Precision cast aluminum, NEMA 4X
Batch Outputs Two form C SPDT relay, 115 VAC 5A max
Max Pulse Output 100 mA at 60 VDC
Memory Type Non-volatile EEPROM auto-backup
Sensor Power 12 VDC, 10 mA
Totalizer 8 digit
Rate Display 5 digit
Volume Units Gallons, cubic feet, cubic meters, liters, million gallons, pounds
Time Units Seconds, minutes, hours, days
Analog Output 4 to 20 mA, 0 to 10 VDC, opto-isolated
Sensor Input Open collector current sink, ESD protected
Max Input Frequency 1,000 Hz
Shipping Weight 7 lbs.

Seametrics FT-520 Instruction Manual .PDF
