Description

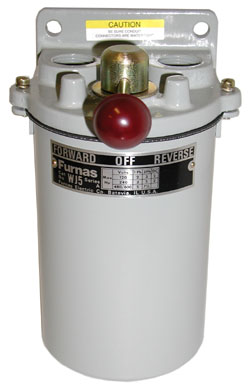

Class 58 Furnas Brand Drum Controllers start, stop and change the speed and/or rotating direction of reversible AC and DC electric motors.  Magnetic chuck switches are also available.

Most controllers are available in NEMA 1 or NEMA 4 enclosures.

The Compact A Series of controllers offers Reversing, Two Speed and Two Speed Reversing controls in NEMA 1 enclosures for applications where space may be restricted.

Note:  To prevent unintentional operation, OSHA regulations and local installation codes may require guarding of handles.  Consult these requirements prior to selecting a drum switch handle.

Features:

• Rated to 10HP 600V

• Easy Terminal Access

• Heavy Duty Contacts

• Choice of Handle Kits

• Variety of Mounting Accessories

• Variety of Enclosures NEMA 1, NEMA 4

• UL Listed E10590

• CSA Certified LR6535
