Description

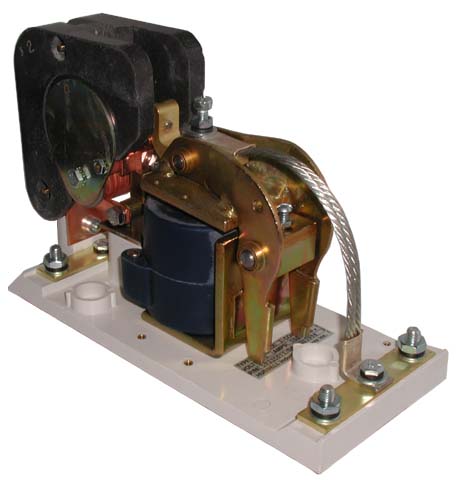

Rugged Euclid™ contactors feature many unique design and engineering advancements that greatly simplify applications, installations and servicing...  Over 65 years of experience in design as well as manufacturing has been incorporated into these highly reliable units.

The Contactor line uses the latest technology in molded plastic materials for those parts requiring insulating qualities and strength.

Available in NEMA Sizes 0-8, Normally Open and Normally Closed.

Features

• Convenient DIRECT-WIRING for Right or Left Hand Power Connections. Rugged Terminals on both sides for all power connections.

  Completely front-connected, front removable "deadback" base design eliminates all nuts and bolts as well as live parts on the back of the base. There is easy access to every part of the contactor.

• Encapsulated Magnet Coil.  115 or 230 VDC standard

• Corrosion resistant, durable, welded steel construction armature assembly incorporates stainless steel spring as well as stainless steel hinge pin providing long mechanical life

• Auxiliary Electrical Contact block can be mounted on either the right or left hand side of the main contactor. Contacts are bridge-type, double-breaking, silver-cadmium oxide. Units can be "stacked" two deep, for multi-circuit arrangements. Auxiliary Electrical Contacts can be supplied in a kit form consisting of one contact block housing one(1) normally open and one (1) normally closed set of contacts in a common assembly, one knocker, plus the necessary mounting hardware

• Hinged Arc-Shield for easy inspection and replacement of contactor tips.
