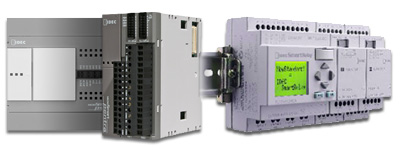

Back to IDEC IDEC PLCs
IDEC brought some of the first micro-PLCs to the market, and has been meeting your changing control automation needs for decades. Our controllers meet the highest standards for safety, flexibility and value. Whether it is system flexibility, space saving, ease of maintenance or powerful programming features, IDEC's programmable logic controllers along with exceptional product support will exceed your expectations.
______________________________________________________________________________________________

Nano PLC

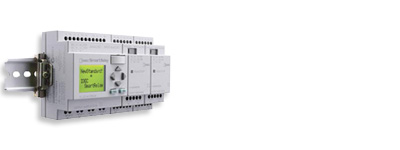

IDEC SmartRelay FL1D

SmartRelay

Overview

Your time is valuable and with that in mind, IDEC has created a product that will require very little of it. Using a system smaller than a PLC, with minimal wiring, mounting as simple as a quick snap on to a DIN rail, and programming as easy as one touch of a button, the user-friendly SmartRelay is the perfect solution.

Why wait? Replace your complicated system of relays, timers and counters with just one IDEC SmartRelay! It’s safe to say we all want to reduce workloads while saving money, and with IDEC SmartRelays it’s easy. These all-in-one controllers require less space in your control cabinet. And as you know, space in your panel is money in your pocket. Combine that with low maintenance and you’ve got a cost-effective product you can count on for all your control operations!

Industrial Facility Systems

  • Conveyor systems
  • Elevator controls
  • Liquid level controls
  • Motor, pump and valve controls
  • Water treatment and irrigation systems

Housing and Building Management

  • Lighting controls
  • HVAC
  • Gate and door controls
  • Shutter and sun blind controls
  • Water and sprinkler systems

Unique Solutions

  • Solar-electric systems
  • Traffi c light controls
  • Ventilation systems on ships
  • Extreme environmental conditions

Monitoring Systems

  • Access controls
  • Alarm systems
  • Parking lot control monitoring

Look around you. IDEC SmartRelays are everywhere! You can find them in lighting controls, ice-making machines, grocery store mist systems and more. And there’s a good reason: IDEC SmartRelays meet all safety requirements, while at the same time saving you time and money. Now our new fourth-generation SmartRelays include new advanced feaures that offer even more versatility and functions!

With new features including: an analog output module, 3 new function block types, upgraded software and available expansion modules, you can get everything you need from one compact module.
When you need a product you can rely on, is easy to use, and meets safety standards, look no further than IDEC. Our SmartRelays meet all industry standard approvals including cULus, CE, C-tick and ABS (American Bureau of Shipping). Plus they are FM approved for Class 1 Div 2 hazardous locations. The bottom line is IDEC SmartRelays provide the right solution for all your control needs!

Key Features

  • Digital/Analog Inputs: maximum of 24 digital inputs
  • System Status : input, output, analog values, timers and counters, - can be monitored through an embedded 4x12 LCD
  • Universal Voltages: 12/24VDC, 24VAC/DC, and 100-240VAC/DC voltages
  • Expansion module: 36 x 90 x 58mm max
  • Large Program Capacity: handle up to 130 function blocks (2000 bytes)
  • DIN Rail or Surface Mountable
  • Operational Control Buttons
  • Control voltages: 12/24VDC, 24VAC/DC, and 100-240VAC/DC voltages
  • Password Protection: unique password protection scheme allowing end users to access certain parameters without seeing or modifying the actual program
  • Integrated Functions: 8 predefi ned basic function blocks and 28 special function blocks ensure that almost all your conventional switching devices — timers and counters — can be replaced
  • Quality: cULus listed, CE certified, EMC compliant, FM approved for Class 1 Div 2 hazardous locations, C-tick compliant, Lloyds Registered, and ABS approved
Documents and Downloads
Smart Relay Sales Brochure
Smart Relay Catalog

______________________________________________________________________________________________

Micro PLCs

Microsmart Pentra

Overview

IDEC strives to give you the best product for your dollar, and our controllers are just that! Offering speed, power, performance and precision are just the tip of the iceberg. The true benefit to using an IDEC controller is that it will cut your development time in half. These reliable controllers are easy to use, easy to maintain and easy to repair. No boards to build and maintain. No approvals to get. No spare parts to worry about. Just a simple, ready-made solution that won’t require time you don’t have to give. Instead, count on saving time with faster response, better throughput, reduced waste and less downtime.

NEW Analog and Communication Modules
Two new analog expansion I/O modules are now available. With fast conversion times and 16-bit resolution, these modules allow you to configure as many as 56 analog I/Os, while gaining increased system throughput. And with 56 available PID loops, you get all the PID control you need. Optional communication modules are also available enabling you to configure up to seven serial devices with your MicroSmart Pentra. Now you can connect your HMI, PC, barcode reader, RFID equipment, printer and more. Both communication and analog modules easily snap-on to the right side of MicroSmart CPU modules without needing extra cables or requiring complex wiring.

Experience Pentra

Key Features

  • Fast processing speed
  • Support 32-bit data processing
  • IEEE standard Floating Pt. Math
  • Built-in Modbus Master & Slave
  • Field Upgradeable Firmware
  • Up to 512 I/Os
  • Configure up to 56 Analog I/Os
  • Max. of 7 Communication Ports
  • Embedded 100kHz HSC & Pulse Outputs
  • Online Edit and Simulation Mode

Highlights of MicroSmart Controllers

Global Standards

All MicroSmart controllers have regulatory agency certifications for the worldwide market including: cULus Listed for Class I Division 2 hazardous locations, CE compliant, and certified for marine use by Lloyd’s Registry.

Compatibility

For added convenience, the same expansion I/O modules and accessories can be used on both the MicroSmart and MicroSmart Pentra controllers. In fact, both controllers also share the same architecture, instruction set and programming software. The use of a single platform for all IDEC PLCs means you won’t have to reprogram or learn a new system to alternate from one to another.

Simple Programming

Relax. Programming doesn’t need to be hard or take a lot of your time. With IDEC WindLDR Software, you can configure, modify and monitor your MicroSmart programs with ease. This powerful and intuitive software makes it simple to get your system up and running. Now supporting Online Editing and Simulation mode.

Compact and Modular Design

Every CPU module comes equipped with embedded I/O points or you can conveniently add additional snap-on expansion modules for up to 512 I/Os based on your system requirements. All IDEC controllers are DIN-rail and panel mountable.

Customizable Structure

Feel the freedom. The ability to customize for the functions you need allows you to create the perfect system for your applications. Add an HMI m
odule, a Real Time clock module or even an optional EEPROM module.


Documents and Downloads
MicroSmart Pentra Sales Brochure
MicroSmart Pentra Catalog

______________________________________________________________________________________________

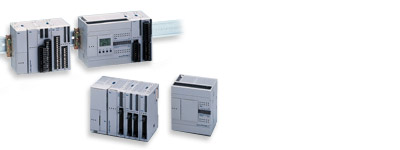

Micro PLCs MicroSmart









Overview

IDEC MicroSmart series PLC is the next generation of programmable logic controller. These flexible, adaptable PLCs are as compact as they are powerful, so you can create the system you need without increasing your space requirements or your budget.

MicroSmart CPUs are available with built-in 10, 16, and 24 I/O All-In-One units, and 20 and 40 I/O slim style models.

Each MicroSmart CPU is designed in a compact and rugged housing. Every MicroSmart module meets IDEC strict quality standards and complies with all major international standards; cULus, CE, TUV, and Lloyds.

Each CPU is equipped with a standard power supply circuit, four high-speed counters, analog potentiometer, and password protection.

The Slim type and the 24 I/O All-in-one CPU can be expanded with the many choices of expansion modules. There are 20 modules available including four analog I/O modules, an AS-interface master communication module, and our most recent addition to the MicroSmart family, the 8-pt AC input module. In addition, 24V DC All-in-one CPUs are now available. Depending upon the CPU, you can create a system with as many as 264 I/Os.

Each MicroSmart module can be enhanced with a memory cartridge for easy maintenance, a real-time clock and calendar cartridge for real time applications, and an RS-485/RS-232 communications adapter. These adapters allow the MicroSmart CPU to data link to the MicroSmart or other IDEC PLCs, connect to operator interfaces, printers, barcode readers, or other RS-232 devices such as modems for remote communication.

MicroSmart PLCs are programmable with WindLDR, IDEC's intuitive ladder logic software. The current WindLDR version 5.03 has improved features such as a split ladder window for easy navigation, improved tag name editor and rung comment search. Download your free demo now or upgrade to WindLDR 5.03 if you have version 4.0 or later.

Key Features

  • Available in Slim or All-In-One styles
  • CPU units are equipped with 10, 16, 20, 24, or 40 I/Os.
  • Maximum of 264 I/Os can be configured on a single MicroSmart CPU
  • Your choice of many expansion modules: AC/DC inputs, relay/transistor outputs, RTD/Thermocouple and Analog I/Os, and AS-interface Master communication module
  • Standard RS232 port, optional plug-in RS485/RS232 port for data link or modem communications
  • Optional plug-in HMI module for monitoring, memory cartridge, and real-time clock and calendar cartridge
  • Built in Modbus-CRC, PID and Ramp functions
  • 4 built-in high speed counters, interrupt and catch inputs, and password protection
  • Data link for up to 32 MicroSmart or other IDEC PLCs
  • cULus, CE, TUV and Lloyds approved
  • Approved for Class 1 Div 2 Hazardous Locations
  • Easy programming using IDEC exclusive WindLDR software
  • New web server module for faster, easier ethernet connectivity
Documents and Downloads
MicroSmart Catalog

______________________________________________________________________________________________

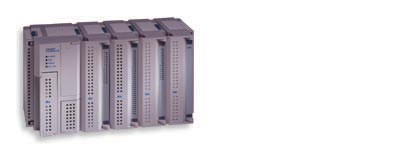

Small/Medium PLCs OpenNet Controller









Overview

IDEC introduces a true Open Architecture PLC: the OpenNet Controller (ONC). This unique PLC is compatible with three major industrial buses, DeviceNet, Interbus-S and LonWorks. Expanding your I/O and existing network, or designing a new system to work hand-in-hand with an existing one is now free of compatibility issues. This open network architecture gives users the control to design systems that are more powerful, cost less and provide flexibility as network technologies change.

The ONC is a high performance PLC with 16K words user program capacity. The ONC allows the user to store, transfer or upgrade the program memory using a miniature flash card. The ONC can handle up to digital 480 I/O, 42 Analog I/O. The system also allows 512 remote I/O using the Interbus-S network.

IDEC's OpenNet Controller offers superior communication flexibility. The ONC comes standard with two RS232 ports, making connections to any RS232C equipment hassle-free. Direct modem dial-up and pager applications are easy, through the built-in Hayes "AT" command set. The CPU is also built with 1 RS485 port and a 10 KHz quadrature High Speed Counter.

The OpenNet Controller is enhanced with 65 advanced instructions including xy conversion, square root and data block move. Multiple PID algorithms make the ONC an exceptional Controller. The ONC has all the features needed in a PLC such as, Real Time Clock, Password protection and catch input functions.

Key Features

  • Digital I/O
  • 8, 16, and 32 point cards
  • 480 I/O points with Expansion Power Supply
  • Analog I/O - Up to 42 analog inputs or 14 analog outputs
  • Analog I/O - 0-5V, 0-10V, +/-5V , +/-10V, 4-20mA
  • Built-In Communications Port - two RS232 (programming port, ASCII, printer and modem ready)
  • Built-In Communications Ports - one RS485 (programming port and data link)
  • Built-in High Speed Counter - 2 phase, 10KHz, 16 bit resolution
  • Memory - 16K User Program Capacity
  • Memory - Flash Miniature Card Slot (FC3A-CP2KM/SM only)
  • Realtime Calendar/Clock
  • Password Protection
  • PID Algorithm
Documents and Downloads
OpenNet Controller Sales Brochure
OpenNet Controller Catalog
