Power Supplies

IDEC switching power supplies are the highest quality on the market and offer the ultimate in performance and reliability. Slim line, standard or metal frame models are available with worldwide approvals, universal input voltage, fused inputs and overload protection.

DIN Rail Mount

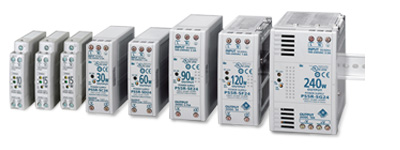

PS5R Slim Line


PS5R Slim Line models give you all the power of a traditional power supply in only half the space. The NEW 10W and 15W are only 22.5mm wide, the 30W and 60W are 36mm wide, and the 90W is 46mm wide. The 120W unit has a width of only 50mm while the 240W is 80mm wide. They also come with all the convenient features you've come to expect from IDEC.

Utilize them in tight spaces or save valuable DIN Rail space while still filling your requirements for power. In addition to the new 10W and 15W, there are also 30W, 60W, 90W, 120W and 240W models available. With all these choices, it’s easy to find the one that’s right for your application!

The PS5R Slim Line series are UL508 listed and approved for Class I Div 2 hazardous locations. The 10W, 15W, 30W and 60W models are also NEC Class 2 rated, while the 120W and 240W even comply with SEMI F47 sag immunity requirements and bear the F47 Approval mark.

Like all IDEC switching power supplies, the PS5R Slim Line series has worldwide approvals, spring-up screw terminals, fused inputs and overload protection. They are DIN Rail or direct surface mountable and have universal (85 - 264V AC) voltage inputs. No derating means you save money, space and time. IDEC quality means you get the power you need; the way you need it.

Key Features

  • New 10W, New 15W, 30W, 60W, 90W, 120W & 240 models
  • Universal Input: 85-264VAC / 100-370VDC
  • Power factor correction (EN61000-3-2)
  • 120W & 240W meet SEMI F47 Sag Immunity
  • UL 1604, Class 1, Div 2 Hazardous Locations (all units)
  • UL 508 (all units)
  • UL13010, NEC Class 2 (10W – 60W only)
  • Over current protection, auto reset
  • Over voltage protection, shut down
  • Output voltage adjust (+ / -10%)
  • Unique spring-up finger-safe terminals, IP20
  • Din Rail or Surface Mount
  • Worldwide Approvals

Documents and Dowloads
PS5R Slim Line Catalog
PS5R Slim Line Sales Brochure

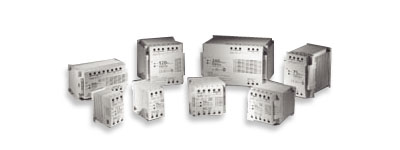

PS5R Standard Power Supplies


IDEC's PS5R series, the new standard in switching power supply technology. Output power ranges from 7.5W to 240W allow your power supply to grow with your needs. With UL508 Listing, you may even be able to use a smaller power supply than you do currently. The outputs are available in either 5VDC, 12VDC or 24VDC, are adjustable +/- 10%, short circuit protected, and regulated to a 2% maximum ripple. Unique spring up terminals allow easy installation of ring lugs, and built in DIN rail clips require no additional brackets (all units are also direct surface mountable).

All models, except the 100W unit, have a universal input that accepts 100-240VAC (or 110-350VDC). The PS5R is truly a power supply designed with a world market in mind, as evidenced by the UL508 listing, c-UL Listing, TUV approval, and CE marking (EN60950, EN50081-2, and EN50082-2).

Key Features

  • Universal AC input (100 to 240VAC)
  • DC compatible input (110 to 350V)
  • Unique spring-up, IP20 fingersafe terminals (ideal for ring lug terminated wire)
  • DIN rail or panel mount
  • Eight output capacities
  • UL508 Listing
  • Fused input, auto-resetting output overcurrent protection
  • Worldwide approvals: UL (UL508), c-UL, TUV, and CE (both LVD and EMC)
  • Built in PFC on 75W, 120W, and 240W model; compliant with EN61000-3-2
  • 75, 100, 120 & 240W models may be connected in parallel

Documents and Downloads
PS5R Standard Catalog
PS5R Standard Sales Brochure

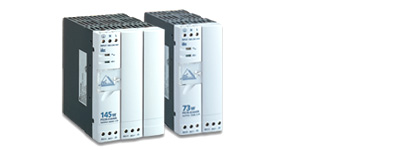

PS2R Power Supplies


Your AS-Interface network can depend on the reliable PS2R AS-interface power supply. Available in 73W and 145W in a slim and rugged housing,
these power supply provide unparalleled power source for your network.

Key Features

  • Slim housing style mountable on DIN rails
  • Two output ratings: 73W and 145W
  • IP20 finger-safe terminals
  • CE marked (LVD, EMCD)
  • UL listed (UL 508), CSA (C22.2 No. 950), TUV (EN60950, EN61010-1)
  • Noise standards EN55022, EN61000-6-2 compliant
  • IEC62026-2 compliant

Documents and Downloads
PS2R Power Supplies Catalog

Metal Frame

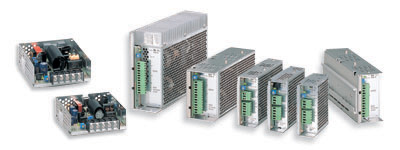

PS3L Power Supplies


PS3L series replaces the PSR, PS3E and PS3C series IDEC power supplies. PS3L series features a sturdy metal frame and a form factor that requires less panel space than the IDEC PS5R series power supplies. PS3L series is finger-safe with output capacities ranging from 10W to 300W with 5V, 12V and 24VDC versions.

A variety of mounting brackets allow for DIN rail mounting or several orientations of direct surface mounting. Universal voltage input and worldwide approvals ensure that a panel or a machine needs only be designed once to use anywhere in the world.

Key Features

  • Universal input (DC compatible)
  • Finger-safe terminals
  • Optional DIN rail brackets
  • Worldwide approvals: UL, CSA, TUV and CE
  • UL 508 listed, UL 1950 recognized
  • CE marked (LVD and EMC)
  • CSA No. 14, CSA No. 950 certified
  • Models from 10W to 300W
  • Output voltages 5V DC, 12V DC, 24V DC
  • 50W, 100W, 150W, 300W have built-in harmonic PFC circuits (EN61000-3-2)

Documents and Downloads
PS2R Power Supplies Catalog
