IDEC

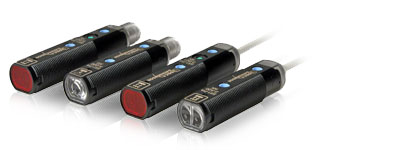

S51 M18 Tubular

Overview

The S51 series offers a cost-effective solution in M18 photoelectric sensors, with a wide range of
operating distances. The diffuse proximity model has a 10cm fixed operating distance with a wide emission spectrum. Also available is a version with a 1 - 40cm adjustable operating distance.
Standard retro-reflective models have an operating distance up to 4m while the polarized retro-reflective models, used for reliable detection of reflective objects, are fitted with a sensitivity adjustment and have a 3.5m operating distance. The emitter and receiver models, used for longer operating distances, reach 18 meters.
The S51 series sensors, with cable or M12 connector and PNP or NPN output, provide a 3-wire connection configuration in compliance with the EN60947-5-2 standard. The normally open output is activatedin light mode in proximity models and in dark mode in retro-reflective models. The output mode can be inverted using the dark/light selection input wire provided, making these extremely versatile sensors.

Common Applications: (click on image below to enlarge)

Object detection in conveyor
Object detection in conveyor

Door Automation control
Door Automation controlDoor Automation control

Object presence detection
Object presence detection

Key Features

  • Flat plastic housing
  • Cable or M12 connection with NPN or PNP output
  • Standard 3-wire connection configuration
  • Selectable dark or light output

Documents and Downloads
S51 Catalog
