IDEC

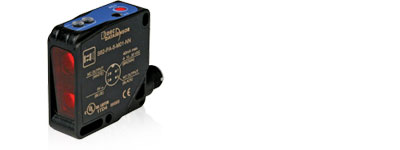

S62 - 50x50 High Performance Sensor

The S62 series, in a 50 x 50 x 18mm compact plastic housing, offers maximum performance for industrial automation applications.
The background suppression proximity models can detect up to 300mm using visible red LED emission, or up to 2000mm with infrared emission. The operating distance can be adjusted through a precise multiturn mechanical regulation of optical triangulation to obtain maximum immunity against color differences of the detected object or of the background, even if very reflective.
A visible red laser is available with a 50-350mm background suppression distance and a polarized retroreflective range reaching more than 20m.
These Laser sensors are characterized by a very small light spot, as well as a fast response time for excellent detection repeatability, even of very small objects or movement.

• High-resolution sensors with LED or Laser emission
• Background suppression models ranging from 30 - 350mm up to 200cm
• Polarized retro-reflective with operating distances up to .3 - 20m
• Sturdy ABS housing with compact 18 x 50 x 50mm dimensions
• NPN or PNP double output with standard NO-NC configuration
