IDEC

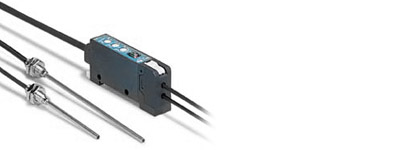

SA1C-F Photoelectric Sensor
Overview
With the basic feature of SA1C, SA1C-F added on fiber optics for remote sensing applications. Close installation is possible for SA1C-F, also come with build-in amplifier with dual transistor outputs.
High-speed, compact is the advantage of the SA1C-F sensor, featuring optional quick connect cable for easy installation.
Key Features
- Ideal for remote sensing applications
- Optional quick-connect cable and easy-insert fiber optic units for simple installation
- Through-beam, and reflected light sensing available
- Sensing range up to 7.09" (180mm) for through-beam sensors
- Dual output: select NPN and PNP transistor outputs or NPN transistor output combined with a self-diagnostic output
- High-speed, 50msec response time
- Featuring variable off-delay (0-100 ms) and fine-tune sensitivity adjustment
- Stable LED makes alignment easy
- Red or green LED available for detecting color marks
- Mount on a 1.378 (35mm) DIN rail
- Protection rated IP66
Documents and Downloads
SA1C-F Catalog
|
