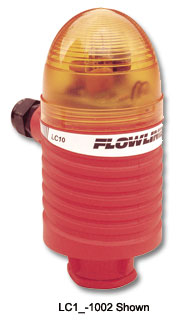

| The general purpose controller is offered in two versions with 1 relay and 1 or 2 sensor inputs. The LC10 provides a high or low level switch with a single sensor input. The LC11 provides latched automatic fill or empty control with two sensor inputs, and is typically integrated with Smart Trak. The optional flash alarm brings immediate attention to process conditions. Package the controller with any of our level switches. |
|
 |
|
Fail-safe compact relay control of pumps and valves with 0-60 second time delay |
|
Optional strobe brings immediate attention to tank alarm conditions |
|
PP enclosure rated NEMA 4X with 300° swivel base for easy conduit alignment |
|
Easy setup with LED indicators for sensor, power and relay status |
|
| Tech Tip |
| The AC powered relay controller has a 10A relay, adjustable time delay, LED indicators and NO or NC invert switch. The rugged NEMA 4X enclosure is made of UL approved fire retardant PP with a swivel base for easy conduit alignment. |
| |
|
|
|
Specifications |
|
Supply voltage: |
120/240 VAC, 50-60 Hz. |
|
Sensor inputs: |
LC10: (1) level switch
LC11: (2) level swiitches |
|
Strobe type: |
10_1: N/a
10_2: Xenon tube |
|
Contact type: |
LC10: (1) SPDT relay
LC11: (1) SPDT relay (latching) |
|
Contact rating: |
250 VAC @ 10A |
|
Contact delay: |
0-60 seconds |
|
LED indication: |
Sensor, power & relay status |
|
Electronics temp: |
F: -40° to 158°
C: -40° to 70° |
|
Enclosure rating: |
NEMA 4X (IP65) |
|
Enclosure material: |
10_1: PP (UL94VO)
10_2: PP (UL94VO) |
|
Enclosure mount: |
3/4" NPT (3/4" Rp) |
|
Classification: |
General purpose |
|
 |
|
