Duty-Cycle GeneraOhio Magnetics Duty-Cycle Generatorstors





Hydra-Mag Generator Package

Model OPTH

Model OPT

Gasoline-Engine Models

Diesel-Engine Models

CVGC Constant Voltage Generator Control



(NOTE: Ammeter, voltmeter, rheostat, and CVGC or meter package required for use with all Ohio generators.)



Hydra-Mag Generator Package

Ohio's newest addition to our reliable generator packages provides power and stability to hydraulically-driven lifting magnets. This completely self-contained hydraulically-driven magnet control package is specially designed to eliminate hours of installation time and provides the added convenience of having all controls mounted together on a fabricated metal base.



Downloadable literature: Ohio Hydra-Mag Package (193KB PDF file)

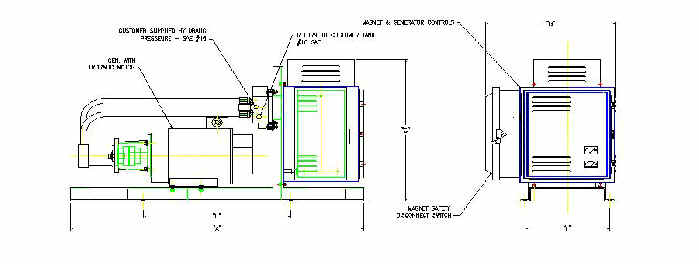

Ohio Hydra-Mag Package



GENERATOR

“A”

“B”

“C”

“D”

“E”

“F”

CONTROLLER

Required Flow

Required Pressure

5  KW

43.00”

28.75”

28.75”

20.94”

18.00”

30 amp

CDS

12 GPM

2368 psi

10 KW

50.69”

24.50”

34.14”

31.00”

14.00”

60 amp

RD-1W

31 GPM

1338 psi

15 KW

60.25”

27.62”

35.63”

29.25”

18.00”

100 amp

RD-1W

32 GPM

1803 psi

20 KW

62.25”

27.62”

35.62”

31.25”

18.00”

100 amp

RD-1W

32 GPM

2304 psi

25 KW

64.25”

27.62”

35.63”

33.25”

18.00”

200 amp

RD-1W /

RD-2A

32 GPM

2805 psi

Top



Model OPTH



Features:

  • Designed for hydraulic motors

  • Belt or hydraulic motor drive

  • 5 to 33 kW

  • 230 VDC



MODEL OPTH GENERATORS

Model

kW

RPM

Dimensions

H x W x D (inches)

Approx. Weight (lbs.)

OPTH-5-25

5

2,500

16 x 10-3/4 x 16-1/2

170

OPTH-10-25

10

2,500

15-9/16 x 12 x 19-7/8

175

OPTH-15-18

15

1,800

18-3/16 x 14 x 24-3/8

290

OPTH-20-18

20

1,800

18-3/16 x 14 x 26-3/8

345

OPTH-25-18

25

1,800

18-3/16 x 14 x 28-3/8

410

OPTH-33-18

33

1,800

20-1/2 x 15-3/4 x 31-11/16

570




Top



Model OPT



Features:

  • Designed for power takeoff

  • Belt motor drive

  • 5 to 33 kW

  • 230 VDC



MODEL OPT GENERATORS

Model

kW

RPM

Dimensions

H x W x D (inches)

Approx. Weight (lbs.)

OPT5-25

5

2,500

16 x 10-3/4 x 16-1/2

170

OPT10-25

10

2,500

15-9/16 x 12 x 19-7/8

175

OPT15-18

15

1,800

18-3/16 x 14 x 24-3/8

290

OPT20-18

20

1,800

18-3/16 x 14 x 26-3/8

345

OPT25-18

25

1,800

18-3/16 x 14 x 28-3/8

410

OPT33-18

33

1,800

20-1/2 x 15-3/4 x 31-11/16

570


Top



5, 15 and 20 kW Gasoline-Engine Models



Features:

  • Gasoline-engine driven

  • 5, 15 and 20 kW

  • 230 VDC



GASOLINE-ENGINE GENERATORS

Model

kW

RPM

Dimensions

H x W x D (inches)

Approx. Weight (lbs.)

OAG5-25

5

2,500

21-1/2 x 17-15/16 x 32-3/4

408

OAG15-18

15

1,800

36-3/8 x 24-3/4 x 46-1/2

720

OAG20-18

20

1,800

36-3/8 x 24-3/4 x 48-1/4

740



25 kW Gasoline-Engine Model



Features:

  • Gasoline-engine driven

  • 25 kW

  • 230 VDC

  • Air-cooled, 4-cylinder gasoline engine

Top



5, 10, 15, 20, 25 and 33 kW Diesel-Engine Models



Features:

  • Diesel-engine driven

  • 5, 10, 15, 20, 25 and 33 kW

  • Air-cooled diesel engine

  • 230 VDC

DIESEL-ENGINE GENERATORS

Model

kW

RPM

Dimensions

H x W x D (inches)

Approx. Weight (lbs.)

OAD5-25

5

2,500

23 x 20-1/2 x 37-5/16

521

OAD10-25

10

2,500

35 x 23-1/2 x 50-1/4

800

OAD15-18

15

1,800

38-1/2 x 26-1/2 x 60

1,150

OAD20-18

20

1,800

38-1/2 x 26-1/2 x 60

1,200

OAD25-18

25

1,800

38-1/2 x 26-1/2 x 60

1,275

OAD33-18

33

1,800

39 x 26-1/2 x 72

1,400

Top



CVGC Constant Voltage Generator Control

Ohio's CGVC generator control automatically compensates to hold generator voltage output within +2 V through your day-to-day operations. Set it once at installation between 230 and 250 VDC to compensate for the line drop in the wires to the magnet.
