SEW Eurodrive
Electro-Mechanical Drives
We offer a wide range of products, from fractional gear drives to large industrial gears. And with more than 1.2 million configurations possible, we're set up to provide custom systems to fit your exact specifications.
R-Series Parallel Gearmotors
 |
| R-Series Product Range |
| Power ratings |
from 0.08 to 434 HP |
| Output speeds |
from 0.01 to 1093 rpm (based on 4 pole motor) |
| Output torques |
to 159,300 lb-in. |
|
F-Series theSNUGGLER® Parallel Helical Gearmotors
 |
| F-Series Product Range |
| Power ratings |
from 0.08 to 337 HP |
| Output speeds |
from 0.01 to 931 rpm
(based on 4 pole motor) |
| Output torques |
to 159,300 lb-in. |
|
K-Series Helical-Bevel Gearmotors
 |
| K-Series Product Range |
| Power ratings |
from 0.08 to 616 HP |
| Output speeds |
from 0.01 to 882 rpm
(based on 4 pole motor) |
| Output torques |
to 442,500 lb-in. |
|
S-Series Helical-Worm Gearmotors
 |
| S-Series Product Range |
| Power ratings |
from 0.08 to 47 HP |
| Output speeds |
from 0.01 to 516 rpm (based on 4 pole motor) |
| Output torques |
to 35,400 lb-in. |
|
W-Series SPIROPLAN® Low Horsepower Gearmotors
 |
| W-Series Product Range – W20 Series |
| 0.5 HP with torques up to 350 lb-in. |
Speed flexibility from 11 to 207 rpm
using an 8, 6, or 4 pole |
| Product Range – W30 Series |
| 1.0 HP with torques up to 620 lb-in. |
Speed flexibility from 11 to 207 rpm
using an 8, 6, or 4 pole |
|
VARIMOT® Friction-Disc Drives
 |
| Varimot - Product Range |
| Power ratings |
from 0.5 to 15 HP |
| Output speeds |
up to 2235 rpm |
| Output torques |
to 64,800 lb-in. |
|
VARIGEAR® V-Belt Drives
 |
| Varigear - Product Range |
| Power ratings |
from 0.5 to 60 HP |
| Output speeds |
up to 3910 rpm |
| Output torques |
up to 427,455 lb-in. |
|
Compact Series Heavy Industrial Speed Reducers
 |
| Compact Series - Product Range |
| Helical and bevel-helical |
| Ratios from 7:1 to 112 and beyond with geared inputs |
| Double and triple reductions |
| Torque capacities to 570,000 lb-in., and input capacities to 1400 HP |
|
P-Series Heavy Industrial Planetary Gearmotors
 |
| P-Series Product Range |
| Helical and bevel-helical |
| Ratios from 100 to 4200:1 |
| Torque capacities to 4,000,000 lb-in. and input capacities to 180 HP |
|
M-Series Heavy Industrial Speed Reducers
 |
| M-Series Product Range |
| Helical and bevel-helical |
| Ratios from 1:1 to 1800:1 and beyond with geared inputs |
| Single to quintuple reduction within one housing |
| Torque capacities to 1.6 million lb-in., and input capacities to 4500 HP |
|
AC Motors and Brakemotors
 |
| AC Motors Product Range |
| Power ratings |
from 0.25 to 100 HP |
| 2-, 4-, 6-, 8-, 4/8-, 2/6-, 2/8-pole plus others |
| Integral brakes to fit all frames |
|

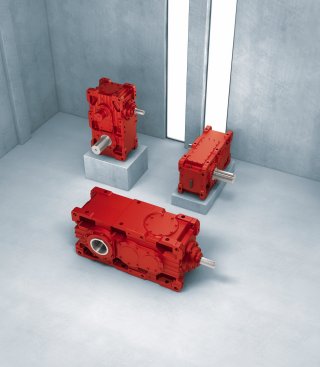

X-Series New Generation Industrial Gear Units
|
|
|
The in-house development of SEW-EURODRIVE's new X-Series heavy industrial gear units is nearly unrivaled with its fine size graduation that covers the medium torque range from 58 to 175 kNm (43000 to 129000 ft-lb). The large number of pre-defined accessories offers a high degree of flexibility for adapting to a broad range of application situations . with a minimum of components at maximum utility.
|
TorqLOC®
|
