Level Sensors

2250 Hydrostatic Level Sensor

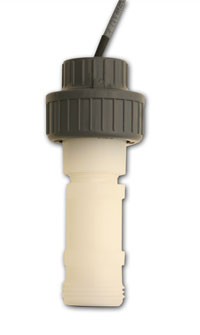

Signet 2250 hydrostatic Level Sensor

The Signet 2250 Hydrostatic Level Sensor for level and depth control has a one-piece injection molded PVDF body and ceramic diaphragm for superior compatibility in corrosive liquids. Utilizing hydrostatic pressure the 2250 disregards false level signals from steam vapors, foam or any other debris on the liquid surface. Two pressure ranges allow for optimal resolution matched to your sensing needs. Solid state circuitry eliminates drift.

Built-in temperature compensation provides outstanding accuracy over wide temperature ranges. These sensors are available with a proprietary digital output (S3L), or 4 to 20 mA output. The extended cable and capillary tubing with the union connection and a customer supplied conduit, allow submersion in process vessels. Integral adapters (sold separately) may be used to create a compact assembly with field mount versions of the Signet 8250 Level transmitter.

Features:

  • Level/depth measurement
  • 4 to 20mA or digital (S3L) output
  • One-piece injection molded PVDF body
  • Flush ceramic diaphragm
  • Easy submersible installation
  • Choice of two pressure ranges
  • Standard union connection and extended cable and capillary tubing 10m (32.8 ft.)

Applications:

  • Inventory Management
  • Storage Tank Monitoring
  • Neutralization Tanks
  • Plating Lines
  • Waste Sumps
  • Clarifiers
  • Overflow protection
