Flowline Level Switch

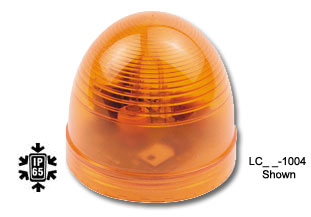

Strobe Alert™ Compact Flash Alarm


Application
Offered in both AC and DC powered configurations, the compact flash alarm brings immediate attention to process conditions. The alarm is compatible with our round enclosures and may be actuated with any of our level switch, flow switch or relay control products. Specify the strobe supply voltage.
Features
High intensity amber flash alarm visually alerts on-site personnel
Rugged NEMA 4X polycarbonate enclosure for harsh environments
Mounts directly on any Flowline round NEMA 4X enclosure
Tech Tip
Strobe Alert is commonly applied in tank spill prevention, pump or process protection applications. Compatable with our round NEMA 4X controller or junction box enclosures, the alarm should be installed in a visible location. We recommend the use of secondary audible alarms in critical applications.
Specifications
Supply voltage:
LC09: 12-36 VDC
LC10: 120 VAC @ 50-60 Hz.
LC10-E: 240 VAC @ 50-60 Hz.
Consumption:
3 watts max
Strobe color:
Amber
Strobe type:
Xenon tube
Strobe flash:
1 per second
Strobe life:
10M cycles
Enclosure rating:
NEMA 4X (IP65)
Enclosure material:
Polycarbonate
Encl. compatibility:
LC05, LC06, LC10 & LC11
Wire type:
2-wire, #22 AWG
Wire length:
5" (12.7 cm)
Classification:
General purpose
