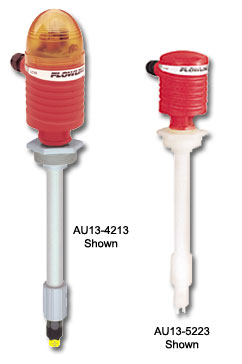

| This general purpose switch package provides a complete solution for high level spill prevention with a fixed level switch point and 10A compact relay controller for pump or valve actuation. The optional flash alarm brings immediate attention to tank high level conditions. The product is typically selected for corrosive bulk storage, day tank and waste sump applications. Specify the appropriate sensor technology, material and assembly dimension. |
|
 |
|
|
Fail-safe relay control of pumps and valves with 0-60 second time delay |
|
PP or PVDF construction for use in challenging corrosive environments |
|
Offered in 3 sensing technologies for broad application coverage |
|
Optional strobe brings immediate attention to tank alarm conditions |
|
PP enclosure rated NEMA 4X with 300° conduit swivel base |
|
| Tech Tip |
Sensor Technology |
The AC powered relay controller has a 10A relay, adjustable time delay, LED indicators, NO or NC invert switch and UL fire retardant PP enclosure.
|
Ultrasonic
Broadly applied in chemical, solvent, hydrocarbon and light weight oil media
Vibration
Typically applied in wastewater media with light coating and/or foaming characteristics
Buoyancy
Best applied in clean water or water-like chemical media that is non-coating or scaling. |
|
|
|
Specifications
|
|
Length:
|
6" to 10' (15cm to 3m)
|
|
Switch points:
|
1 (set by factory)
|
|
Supply voltage:
|
120/240 VAC @ 50-60 Hz.
|
|
Contact type:
|
(1) SPST relay
|
|
Contact rating:
|
250 VAC @ 10A
|
|
Process temp:
|
F: -40° to 176°
C: -40° to 80°
|
|
Pressure:
|
150 psi (10 bar)
|
|
Wetted material:
|
PP / PVDF
|
|
Conduit entrance:
|
1/2" NPT
|
|
Enclosure rating:
|
NEMA 4X (IP65)
|
|
Process mount:
|
2" NPT (2" G)
|
|
Classification:
|
General purpose
|
|
|
|
