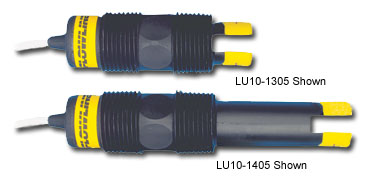

| CSA approved intrinsically safe for use in hazardous area locations, the ultrasonic level switch is broadly applied in chemical, solvent, hydrocarbon and petroleum based liquids. Media examples include fuel, acetone and hydrochloric acid. The 1A relay provides a reliable switch interface with remote devices such as a PLC, SCADA or alarm. The submersible sensor is universally mounted through the wall or inside the tank. |
|
|
|
CSA approved intrinsically safe for use in hazardous area locations |
|
Rugged PP or PFA Teflon® probe and cable rated NEMA 6 |
|
1A relay selectable NO or NC via power supply wiring polarity |
|
Compatible with MicroPoint multi-channel indicator |
|
| Tech Tip |
| Switch-Tek ultrasonic is the best level switch for a wide range of liquids including corrosive chemicals, ultrapure water and solvents. Both the submersible sensor probe and cable are constructed of the same rugged PP or PFA Teflon® material per your order. This unique packaging design is completely sealed for maximum reliability. |
 |
|
|
Specifications
|
|
Orientation:
|
Universal
|
|
Repeatibility:
|
± 0.5 mm in water
|
|
Supply voltage:
|
12-36 VDC
|
|
Contact type:
|
(1) SPST relay (NO/NC)
|
|
Contact rating:
|
60 VA
|
|
Process temp:
|
F: -40° to 194°
C: -40° to 90°
|
|
Pressure:
|
150 psi (10 bar)
|
|
Cable length:
|
10' (3m)
|
|
Sensor rating:
|
NEMA 6 (IP68)
|
|
Process mount:
|
3/4" NPT (3/4” Rp)
|
|
Sensor material:
|
PP / PFA Teflon®
|
|
Classification:
|
Intrinsically safe
|
|
 |
|
