| The general purpose intrusive capacitance level switch is an excellent choice for a wide range of relatively clean, aqueous based conductive liquids with non-coating and/or scaling characteristics. Media examples include hydrogen peroxide and chromic acid. The 1A relay provides a reliable switch interface with remote devices such as a PLC, SCADA or alarm. The submersible sensor is universally mounted through the wall or inside the tank. |
|
|
|
|
PP or PFA sensor and cable rated NEMA 6 or IP68 |
|

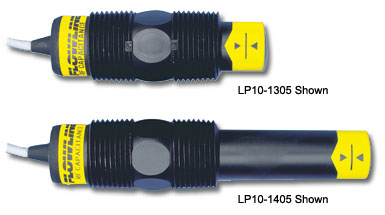

Available in short and long sensor lengths for flexible installation |
|
1A relay selectable NO or NC via power supply wiring polarity |
|
Compatible with Flowline alarm, controller and fitting accessories |
|
| Tech Tip |
| The NO or NC relay state is selected via the power supply wiring polarity. Its level wiring made simple. |
 |
|
|
|
|
Specifications
|
|
Orientation:
|
Universal
|
|
Repeatability:
|
± 0.5 mm in water
|
|
Supply voltage:
|
12-36 VDC
|
|
Contact type:
|
(1) SPST relay
|
|
Contact rating:
|
(1) 60 VA
|
|
Process temp:
|
F: -40° to 176°
C: -40° to 80°
|
|
Pressure:
|
150 psi (10 bar)
|
|
Cable length:
|
10' (3m)
|
|
Sensor rating:
|
NEMA 6 (IP68)
|
|
Process mount:
|
3/4" NPT (3/4" G)
|
|
Sensor material:
|
PP / PFA
|
|
Classification:
|
General purpose
|
|
 |
|
