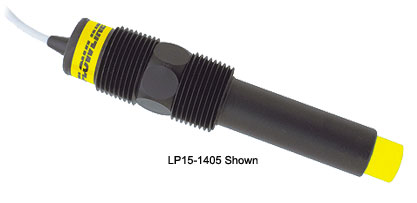

| The general purpose guard capacitance level switch is a great choice for a wide range of aqueous based conductive liquids with light coating, crystallizing or scaling characteristics. Media examples include copper sulfate and brine. The 1A relay provides a reliable switch interface with remote devices such as a PLC, SCADA or alarm. The submersible sensor is universally mounted through the wall or inside the tank. |
|
|
|
Guard circuit optimizes sensor performance in coating type media |
|
Rugged PP sensor and cable rated NEMA 6 or IP68 |
|
1A relay selectable NO or NC via power supply wiring polarity |
|
Compatible with Flowline alarm, controller and fitting accessories |
|
| Tech Tip |
| The capacitance switch has a RF guard circuit that eliminates the coating signal path between the active and reference electrodes. For best coating performance, install the sensor horizontally through the side wall of a non-metallic tank. Its coating level made simple |
 |
|
|
Specifications
|
|
Orientation:
|
Universal
|
|
Repeatability:
|
± 0.5 mm in water
|
|
Supply voltage:
|
12-36 VDC
|
|
Contact type:
|
(1) SPST relay
|
|
Contact rating:
|
60 VA
|
|
Process temp:
|
F: -40° to 176°
C: -40° to 80°
|
|
Pressure:
|
150 psi (10 bar)
|
|
Cable length:
|
10' (3m)
|
|
Sensor rating:
|
NEMA 6 (IP68)
|
|
Process mount:
|
3/4" NPT (3/4" G)
|
|
Sensor material
|
PP
|
|
Classification:
|
General purpose
|
|
|
|
