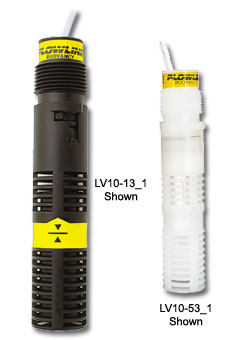

| The general purpose buoyancy level switch is a perfect choice for relatively clean water and chemical solutions with non-coating and/or scaling characteristics. Media examples include acetic acid and process water. The baffle body eliminates switch chatter caused by turbulence. The dry contact closure provides a reliable switch interface with remote devices such as a PLC, SCADA or alarm. The sensor mounts vertically inside the tank on our Smart Trak or Switch-Pak fittings. |
|
 |
|
|
Baffle body and dynamically stabilized float eliminate turbulence switch chatter |
|
PP or PVDF sensor and cable rated NEMA 6 or IP68 |
|
15 VA dry contact with selectable NO or NC state via wire selection |
|
Compatible with Flowline controller, alarm and fitting accessories |
|
| Tech Tip |
| For reliable service in highly corrosive media, select the PVDF material option. The rugged sensor features a PVDF body with a PFA cable. Its corrosive level made simple. |
|
|
|
|
Specifications
|
|
Orientation:
|
± 20° vertical
|
|
Repeatability:
|
± 1 mm in water
|
|
Contact type:
|
(1) SPDT relay
|
|
Contact rating:
|
15 VA
|
|
Process temp:
|
F: -40° to 176°
C: -40° to 80°
|
|
Pressure:
|
25 psi (2 bar)
|
|
Cable length:
|
10' (3m)
|
|
Sensor rating:
|
NEMA 6 (IP68)
|
|
Process mount:
|
3/4" NPT (3/4" Rp)
|
|
Sensor material
|
PP / PVDF
|
|
Classification:
|
General purpose
|
|
 |
|
