Seametrics WTS Series Instruction Manual .PDF

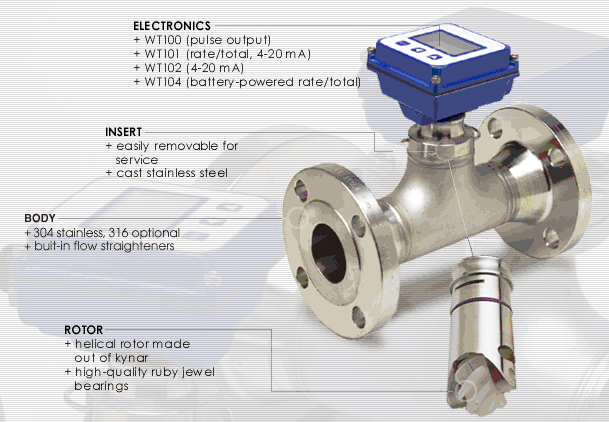

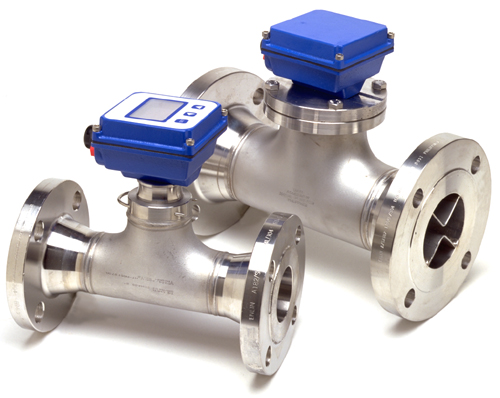

Stainless-steel body turbine flow meter
» In-line, individually-calibrated turbine meter maximizes accuracy
» Turbine rotor is the only moving part, optimizing low-flow performance
» Solid-state pickup
» Electronic register can be meter-mounted or remote
» Available with blind pulse or 4-20 mA output
» Lightweight, corrosion-resistant 304SS (or optional 316SS) body
Features
Specifications
Materials
| Meter Body |
304SS Stainless, 316SS optional |
| Turbine Insert |
CF8M Cast Stainless |
| Turbine Rotor |
Kynar (PVDF) |
| Shafts |
Zirconia ceramic |
| Bearings |
Sapphire journal, ruby endstone |
| Maximum Pressure |
200 psi (14 bar) |
| Maximum Temperature |
200° F (93° C) |
| Accuracy |
± 1% of full scale |
| Flow Range (Gallons Per Minute) |
|
|
2" |
3" |
4" |
6" |
8" |
| Minimum |
2 |
3 |
6 |
12 |
30 |
| Maximum |
150 |
400 |
600 |
1200 |
3000 |
Flow Range (Liters Per Minute)
|
2" |
3" |
4" |
6" |
8" |
| Minimum |
8 |
11 |
23 |
46 |
114 |
| Maximum |
568 |
1514 |
2271 |
4542 |
11000 |
ELECTRONIC OPTIONS:
WT100 (Pulse Output Only)
| Power |
6-24 Vdc |
| Pulse Output |
0-75 pulse/second current sinking |
WT101 (Powered Rate/Totalizer)
| Power |
12-32 Vdc (for 4 mA DC min);
24-32 Vdc (for accuracy of 4-20 mA loop) |
| Rate |
6-digit autorange |
| Total |
8-digit |
| Memory |
Non-volatile (no battery needed) |
| Pulse Output |
0.1 second open collector (scaled);
0-75 pulse/second passthrough (unscaled); High or low alarm |
| Analog Output |
4-20 mA loop (24-32 Vdc required) |
|
WT102 (Blind 4-20 Transmitter)
| Power |
24-36 Vdc (isolated) |
| Analog Output |
4-20 mA loop |
| Response Time |
2-60 seconds, 90% of full scale (depends on input averaging) |
WT104 (Battery-powered Rate/Totalizer)
| Power |
3.6 Vdc Lithium battery; replaceable, 3-5 year life |
| Rate |
6-digit autorange |
| Total |
8-digit |
| Pulse Output |
0.1 second open collector (scaled);
0-75 pulse/second passthrough (unscaled); High or low alarm |
| Cable |
#22 AWG 3-con, 18 ft; 2000' max run |
|
