Flowline

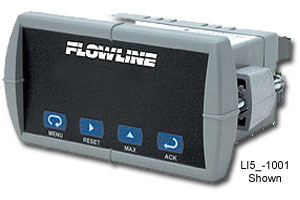

DataPoint Advanced Panel Meter

DataPoint Advanced Panel Meter .PDF
DataPoint Advanced Panel Meter Data Sheet .PDF
DataPoint Advanced Panel Meter Manual .PDF
Application
The general purpose 1/8 DIN single-channel meter is offered in three configurations. Select the meter only for indication, the meter with 2 relays for indication and automation, and the meter with 4-20 mA repeater for signal isolation. With the optional MeterView® PC calibration kit, users can conveniently program or clone meters, save meter profiles, datalog and export data to HTML or TXT file formats.
Features
Relay alternation and lead lag control optimize pump performance and maintenance
High intensity LED display is readable in direct sunlight for outdoor applications
Rugged 1/8 DIN polycarbonate enclosure with splash proof NEMA 4X faceplate
Compatible with analog, voltage and RTD thermocouple sensor inputs
Calibration
Your indicator may be configured in less than a minute using the MeterView PC calibration kit. User configuration files are retained for indicator cloning and record keeping. The software also provides a convenient interface for data-logging.
Specifications
Display type :
LED, 4-digit
Display units:
Engineering
Display output:
0-9999
Input channel:
(1) 4-20mA / 0-10 VDC
Supply voltage:
90-250 VAC, 50-60 Hz.
PC-cal. interface:*
RS232 adaptor w/cable
PC-cal. software:*
MeterView (Windows®)
Memory:
Non-volatile
Sensor supply:
24 VDC @ 200 mA
Repeater output:
LI52: Isolated
Contact type:
LI51: (2) SPDT relays
Contact rating:
LI51: 750 VA
Contact output:
LI51: Selectable NO/NC
Contact mode:
LI51: Alarm, latched, pump-altern., lead-lage
Operating temp.:
F: -4° to 140°
C:-20° to 60°
Enclosure type:
1/8 DIN
Enclosure rating:
NEMA 4X (IP65) faceplate
Enclosure mat'l.:
Polycarbonate FR
Classification:
General purpose
* Requires the LI97-1001 MeterView calibration kit

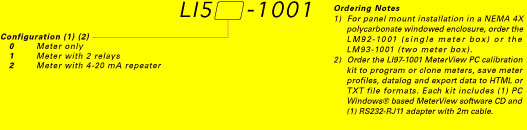

Part Numbers
  • LI05-10001
  • LI15-10001
  • LI25-10001
