Flowline Level Transmitters

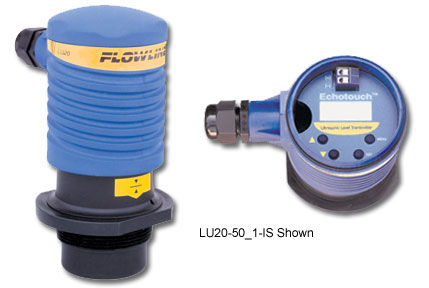

EchoTouch™ Two-Wire Ultrasonic Level Transmitter

EchoTouch Two-Wire Ultrasonic Level Transmitter .PDF
EchoTouch Two-Wire Ultrasonic Level Transmitter Data Sheet .PDF
EchoTouch Two-Wire Ultrasonic Level Transmitter Manual .PDF

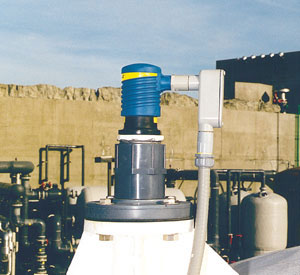

Application
CSA approved intrinsically safe for use in general purpose or hazardous applications, the two-wire ultrasonic transmitter provides non-contact level measurement up to 18' or 5.4m, and is ideally suited for challenging corrosive, slurry or waste liquids. Push button calibrated, the transmitter is typically selected for atmospheric bulk storage, day tank and waste sump applications located within a classified area. Media examples include diesel fuel and sulfuric acid.
Features
Intrinsically safe transmitter for use in hazardous environments
LCD digital display indicates level in inches or centimeters
EasyCal simple push button calibration for all user set points
PP enclosure rated NEMA 4X with rugged PVDF transducer
Adjustable dead band and range filters eliminate false echo returns
Tech Tip
Complete your intrinsically safe level transmitter package with the LB10-1001 or equivalent intrinsic safety barrier.
Specifications
Range:
6" to 18' (15cm to 5.4m)
Accuracy:
± 0.25% of span
Display type:
LCD, 4-digit
Beam cone:
8° conical
Dead band:
6" (15cm)
Supply voltage:
12-32 VDC
Signal output:
4-20 mA, two-wire
Calibration:
Push button
Process temp:
F: -4° to 140°
C: -20° to 60°
Pressure:
30 psi (2 bar)
Conduit:
1/2" NPT
Enclosure rating:
NEMA 4X (IP65)
Process mount:
2" NPT (2" G)
Trans. material
PVDF
Classification:
Intrinsically Safe
Part Numbers
  • LU20-5001-IS
  • LU20-5061-IS
