| Offered in FM and CSA approved explosion proof or general purpose configurations, the two-wire float transmitter provides contact level measurement up to 6' or 1.8m, and is ideally suited for relatively clean water, light oil or diluted corrosive liquids. The transmitter is typically selected for high temperature and/or pressure process tank applications located within a classified hazardous or general purpose area. Media examples include hot water and cooking oil. |
|
 |
|

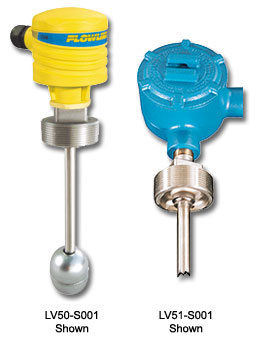

Explosion proof transmitter for use in hazardous environments |
|
Rugged 316 stainless steel float, guide and 2" NPT mounting plug |
|
Compatible with Flowline remote indicator and relay controllers |
|

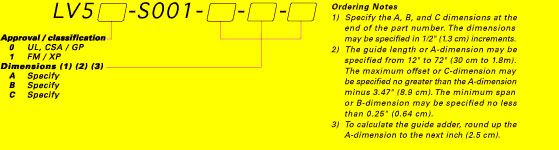

Custom assembled to your guide length and span dimensions |
|
| Tech Tip |
| Perfect for high temperature and pressure applications, the LV51-S001 explosion proof transmitter is provided with a rugged cast aluminum enclosure rated NEMA 7. Its hazardous level made simple. |
|
|
|
|
|
Specifications |
|
Range: |
5" to 6' (12.7cm to 1.8m) |
|
Accuracy: |
± 0.25% over span in water |
|
Specific gravity: |
0.75 minimum |
|
Supply voltage: |
LV50: 10 to 30 VDC
LV51: 10 to 40 VDC |
|
Signal output: |
4-20 mA, two-wire |
|
Calibration: |
None, fixed span |
|
Process temp.: |
F: -5° to 125°
C: -20° to 50°
|
|
Pressure: |
300 psi (20 bar) |
|
Conduit: |
1/2" NPT |
|
Enclosure rating: |
NEMA 4X (IP65) / NEMA 7 |
|
Process mount: |
2" NPT |
|
Guide/float mat: |
316 ss |
|
Classification: |
LV50: General purpose
LV51: Explosion proof |
|
|
