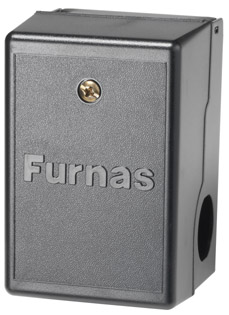

Furnas Brand 69J Description

Designed to be the most adaptable switch on the market, the 69J offers the user the flexibility to build the pressure switch around the compressor—not the other way around.  The unloader can be mounted on either side, and can be rotated to any of eight different positions allowing for quicker assembly and shorter tubing.  Bottom cable entry is also available with unique built-in clamping strain relief for even quicker assembly.  With thousands of variations right off the production line, the 69J provides maximum flexibility at minimum cost.  With UL, CSA and CE approvals, the 69J is designed to be sold anywhere in the world.

Furnas Brand 69J Features:

• 3 and 5 HP 200 PSI maximum
• Improved unloader valve design
• Several terminal options
• Optional bottom cable entry
• Silver cad-oxide brazed contacts
• Rugged cover
• 4 port manifold available (4 x ¼ FNPT)
• Choice of auto-Off lever locations
• UL listed
• CSA certified
• CE approved
• ¼" female NPT with pulsation orifice standard
• Delayed unloader value available for under voltage start condition
