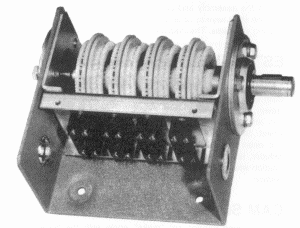

GEMCO
Micro-Adjust Cams
Series 1980
Rotating Cam Limit Switches
FEATURING
• Precision Cam adjustment at any angular position of the
Cam shaft
• Speeds from 0 to 500 RPM in either direction
• No special cams required for any contact setting from 4°
to 356°
• No tools required to adjust Cam setting
• Accurate repeatability
• Gemco rugged duty precision snap action switches
|
 |
ACCESSORIES
The following accessories can be obtained with the Gemco
Rotating Cam Limit Switch:
• Straight Drive and Right Angle Gear Reducers
• Timing Dial and Timing Dial Window
• Electrical Wiring per Customers Specification
• Motor Driven Rotating Cam Limit Switch with A.C. or D.C. for
Adjustable Speed Drives
• Potentiometer driven off the cam shaft
• Spring Return Mechanism
• Plug-In Socket
• Double Ended Shafts
• Pilot Lights
• 3 Way and 4 Way Air Valves directly interchangeable with
switches
• Special Conduit Opening
• Special shaft extensions and keyway
• Adjustable Coupling (See Catalog Section 3001)
• Special Cams & Large 6° Cams for Higher Resolution
• Combination Adjustable-In-Motion and Micro-Adjust Circuits (see
Catalog Section 1981)
• Electric Clutch and/or Brake
• Separate Terminal Strips
• Add-A-Cam Feature
• Factory Adjustment of Cams Available
• Open Type Units
• Dual Shafts
FOR OSHA STANDARDS
• Motion Detector
• Gemco DRIVE-CHEK®
|
] Either is necessary for
] mechanical press application*
|
• Dual Shaft Cam Switch
• Consult manufacturer for desired accessories
|
APPLICATION:
Gemco's all new Micro-Adjust Rotating Cam Limit Switch is a pilot device used for heavy duty material handling mechanisms, mechanical presses,* packaging machines, rotary table, and in many other applications where accurate, repetitive, and sequential operations are required in control circuitry.
When motion is expressed in shaft rotation, either through a roller chain, gear train, or directly, the Gemco Rotating Cam Limit Switch makes it possible to open or close independent circuits at any desired angular position.
|
|
MOUNTING OF UNIT
Mount the assembly and couple input shaft to the driving member with the shaft keyway up and in line with the positioning arrow on the bearing end plate. The machine should be in the start cycle position.
ESTABLISHING CAM SHAFT
DIRECTION OF ROTATION

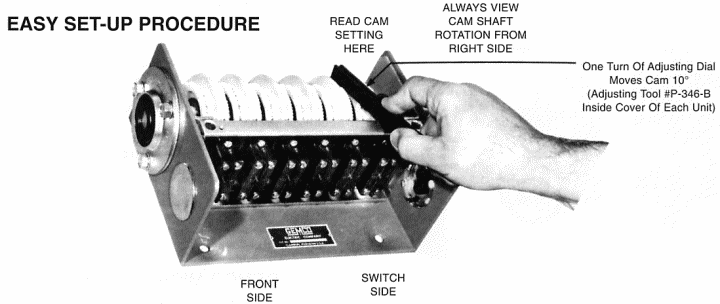

Cam settings should be made with the cam shaft uppermost to the viewer. The picture at the top right illustrates this viewing position and also shows the adjusting tool being applied to the adjusting wheel. Shaft rotation is always established off the right end of the unit even when the input shaft, whether direct or through a gear reducer, is situated at the left end. As an aid to designating shaft rotation when a gear reducer is used, consult page 14 of this catalog section.
CAM SETTINGS

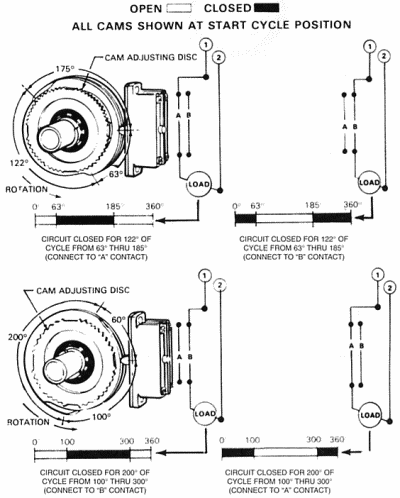

For clockwise rotation set "make" angle with the black dial and break with the red dial for dwell settings less than 180°. Reverse colors for dwells 180° or greater.
For counterclockwise rotation, set "make" angle with the white dial and "break" with the yellow dial. Reverse colors for dwells 180° or greater.
Switch connections should be made in accordance with the illustrations to the right, which incidentally are both clockwise rotating examples.
|

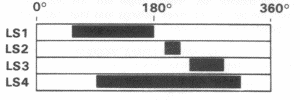

TYPICAL SETTINGS AT BEGINING
OF MACHINE CYCLE
|
DESCRIPTION

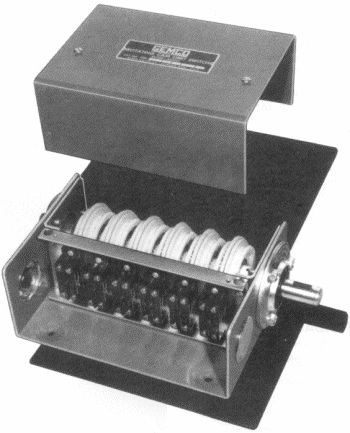

Precision, rugged duty snap action switches, extremely accurate cam adjustments with a heavy-duty shaft, rugged case and lifetime sealed ball bearings, have been combined by Gemco to provide the most versatile and dependable Rotating Cam Limit Switch available.
NO SPECIAL CAMS ARE REQUIRED

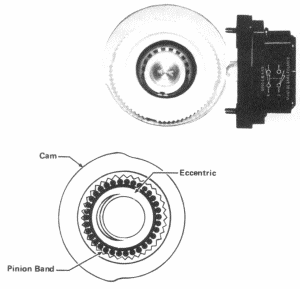

The accurate cam adjustments are made possible by the use of a separate reduction drive in each half of a circuit cam block assembly. This drive provides a 36 to 1 ratio, which means that one revolution of the adjustment wheel will advance or retard the cam set ting by 10 degrees.
For most applications, therefore, no special cams are necessary and settings may be changed at any angular position of the camshaft.
LIFETIME SEALED BALL BEARING allows mounting in any position.
LARGE COVER OPENINGS for ease of wiring.
NO MINIMUM SPEED is specified because snap action contacts are used. Maximum rated speed of the cam shaft is 500 RPM and can be rotated either clockwise or counterclockwise.
Two types of compact integrally MOUNTED GEAR REDUCERS are available with ratios of 1:1 through 600:1. They can also be supplied with speed multipliers up to 1:8.
|
|
TECHNICAL DATA
• The maximum temperature with full electrical load is
185°F. The minimum operating temperature is -50°F
minimum cam adjusting temperature is -10°F.
• Standard Gemco Rotating Cam Limit Switches have a
rating of 50 pounds end thrust and 500 pounds radial load
on standard shaft extensions.
• TORQUE REQUIRED - .6 LB-IN/CIRCUIT.
• REPEATABILITY + OR - 1/4°
SNAP ACTION SWITCHES
All standard Gemco Rotating Cam Limit Switches employ S.P.D.T. precision type snap action switches which provide the advantage of double break contacts and are actuated at a uniform rate to give long life. D.P.D.T. switches can be provided upon request. Any number of circuits from 1 to 40 may be supplied as standard in NEMA 1, NEMA 4, NEMA 7 and NEMA 12 enclosures.
GEMCO MICRO-ADJUST
CAMS PROVIDE UNLIMITED CIRCUIT VERSATILITY
Each switch setting can be adjusted to your circuit requirements. An unlimited selection of circuit arrangements is available with the Gemco Rotating Cam Limit Switch, with no special mounting cams, dogs, etc. for contact settings.
|
ELECTRICAL SWITCHES
DESCRIPTION

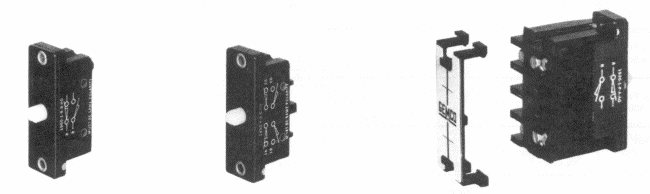

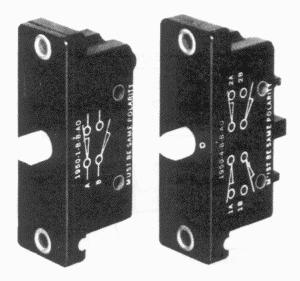

The Gemco Precision Snap Switches are designed for industrial duty applications where compact size, complete reliability and millions of trouble free operations are required.
The housing is molded material, which has excellent resistance to arcing and carbon tracking. The operating button is of molded nylon, a material with excellent wear characteristics.
The button is well guided at the top and bottom to insure accurate repeatability and minimum wear.
Any combination of Single Pole Double Throw or Double Pole Double Throw snap action switches can be supplied with the Gemco Rotating Cam Limit Switch.

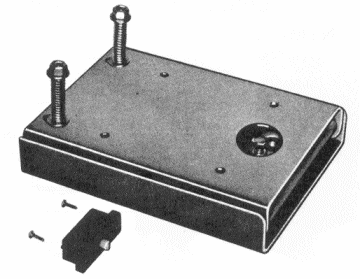

The switches are individually mounted and can be readily replaced without the need of adjustment or alignment. All switches have binder head terminal screws, which are accessible for wiring with either stripped, or wire lug connections.
|
NOTE: Refer to Catalog Section 1950 for detailed information pertaining to all Standard and Special Switch Options.
|
|
Switch replacement is recommended every 15 million cycles.
|

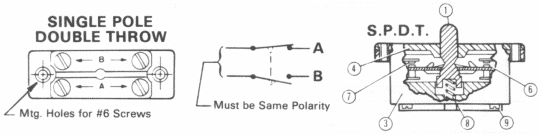

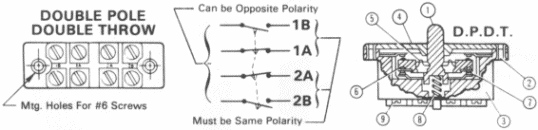

1. Plunger
2. Eyelet
3. Enclosure
4. Cover
5. Contract Spring
6. Movable Contact Ass'y
7. Stationary Contact Ass'y
8. Return Spring
9. Terminal Screws
|
|
ELECTRICAL CONTACT RATINGS
| Switch Type |
Contacts |
Volts |
AC |
Volts |
DC |
Inductive
Pilot Duty 35% Power Factor |
Resistive 75% Power Factor |
Inductive Pilot Duty
and Resistive |
| Make |
Break |
|
Continuous Carrying Amperes |
Make, Break,
and Continuous Carrying Amperes |
Make and Break Amperes |
Continuous Carrying Amps |
| Amps |
VA |
Amps |
VA |
Single Throw |
Double Throw |
| 1950-4 |
DPDT |
115
230
440
575
|
30
15
7.5
6 |
3450
3450
3450
3450 |
3
1.5
0.75
0.6 |
345
345
345
345 |
10
10
10
10 |
10
10
10
10 |
115
230
600 |
1.0
0.3
0.1 |
0.2
0.1
.... |
10
10
10 |
| 1950-1 |
SPDT |
110
220
440
600
|
40
20
10
8 |
....
....
....
.... |
15
10
6
5 |
....
....
....
.... |
15
15
15
15 |
15
15
15
15 |
115
230
600 |
0.5
0.25
0.05 |
0.25
0.1
.... |
15
15
15
15 |
|

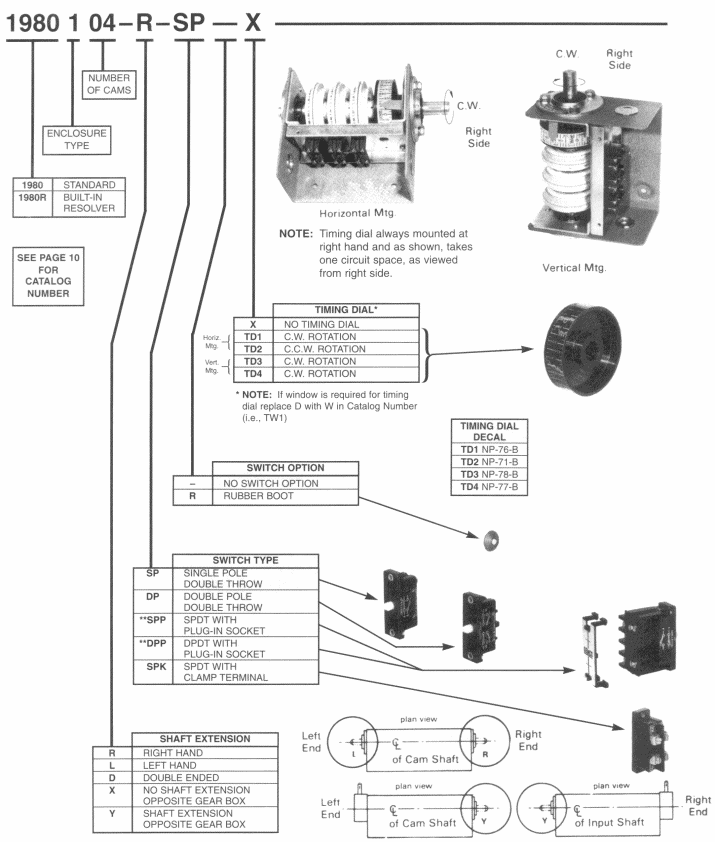

EXPLANATION OF CATALOG NUMBERING SYSTEM
* Number of circuits restricted - consult factory
** When plug-in switches are specified, one extra circuit space must be allowed for in the enclosure
|
STANDARD PART NUMBERS
|

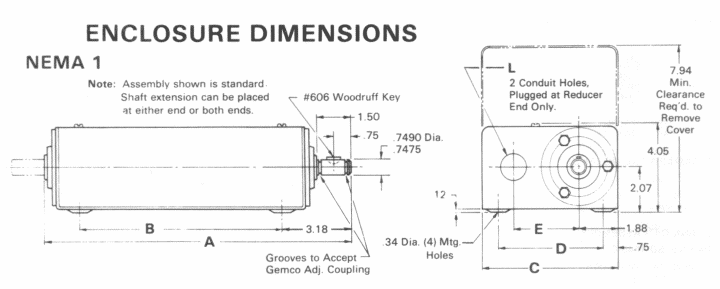

NEMA 1
 |
NEMA 4 & 5
 |
NEMA 7
 |
NEMA 12
 |
Number
of
Circuits |
NEMA 1 |
NEMA 4 & 5 |
NEMA 7 |
NEMA 12 |
| |
Catalog
Number |
Cat. No.
w/Resolver |
Catalog
Number |
Cat. No.
w/Resolver |
Catalog
Number |
Cat. No.
w/Resolver |
Catalog
Number |
Cat. No.
w/Resolver |
1
2
3
4 |
1980-101
1980-102
1980-103
*1980-104 |
1980R-101
1980R-102
1980R-103
1980R-104 |
1980-401
1980-402
1980-403
1980-404 |
1980R-401
1980R-402
1980R-403
1980R-404 |
1980-701
1980-702
1980-703
1980-704 |
Consult
Factory |
1980-1201
1980-1202
1980-1203
*1980-1204 |
1980R-1201
1980R-1202
1980R-1203
1980R-1204 |
5
6 |
1980-105
*1980-106 |
1980R-105
1980R-106 |
1980-405
1980-406 |
1980R-405
1980R-406 |
1980-705
1980-706 |
|
1980-1205
*1980-1206 |
1980R-1205
1980R-1206 |
7
8 |
1980-107
*1980-108 |
1980R-107
1980R-108 |
1980-407
1980-408 |
1980R-407
1980R-408 |
1980-707
1980-708 |
|
1980-1207
*1980-1208 |
1980R-1207
1980R-1208 |
9
10
11
12 |
1980-109
1980-110
1980-111
*1980-112 |
1980R-109
1980R-110
1980R-111
1980R-112 |
1980-409
1980-410
1980-411
1980-412 |
1980R-409
1980R-410
1980R-411
1980R-412 |
1980-709
1980-710
1980-711
1980-712 |
|
1980-1209
1980-1210
1980-1211
*1980-1212 |
1980R-1209
1980R-1210
1980R-1211
1980R-1212 |
13
14
15
16 |
1980-113
1980-114
1980-115
1980-116 |
|
1980-413
1980-414
1980-415
1980-416 |
|
1980-713
1980-714
1980-715
1980-716 |
|
1980-1213
1980-1214
1980-1215
1980-1216 |
|
17
18
19
20 |
1980-117
1980-118
1980-119
1980-120 |
|
1980-417
1980-418
1980-419
1980-420 |
|
1980-717
1980-718
1980-719
1980-720 |
|
1980-1217
1980-1218
1980-1219
1980-1220 |
|
21
22
23
24 |
1980-121
1980-122
1980-123
1980-124 |
|
1980-421
1980-422
1980-423
1980-424 |
|
1980-721
1980-722
1980-723
1980-724 |
|
1980-1221
1980-1222
1980-1223
1980-1224 |
|
25
26
27
28 |
1980-125
1980-126
1980-127
1980-128 |
|
1980-425
1980-426
1980-427
1980-428 |
|
1980-725
1980-726
1980-727
1980-728 |
|
1980-1225
1980-1226
1980-1227
1980-1228 |
|
29
30
31
32 |
1980-129
1980-130
1980-131
1980-132 |
|
1980-429
1980-430
1980-431
1980-432 |
|
1980-729
1980-730
1980-731
1980-732 |
|
1980-1229
1980-1230
1980-1231
1980-1232 |
|
33
34
35
36 |
1980-133
1980-134
1980-135
1980-136 |
|
1980-433
1980-434
1980-435
1980-436 |
|
1980-733
1980-734
1980-735
1980-736 |
|
1980-1233
1980-1234
1980-1235
1980-1236 |
|
37
38
39
40 |
1980-137
1980-138
1980-139
1980-140 |
|
1980-437
1980-438
1980-439
1980-440 |
|
1980-737
1980-738
1980-739
1980-740 |
|
1980-1237
1980-1238
1980-1239
1980-1240 |
|
* Stock with a right hand shaft and S.P.D.T. switches.
SINGLE SHAFT EXTENSION
MAXIMUM SPEED 500 R.P.M.
CONSULT FACTORY FOR OPTIONS AND NON-LISTED CATALOG NUMBERS.
|

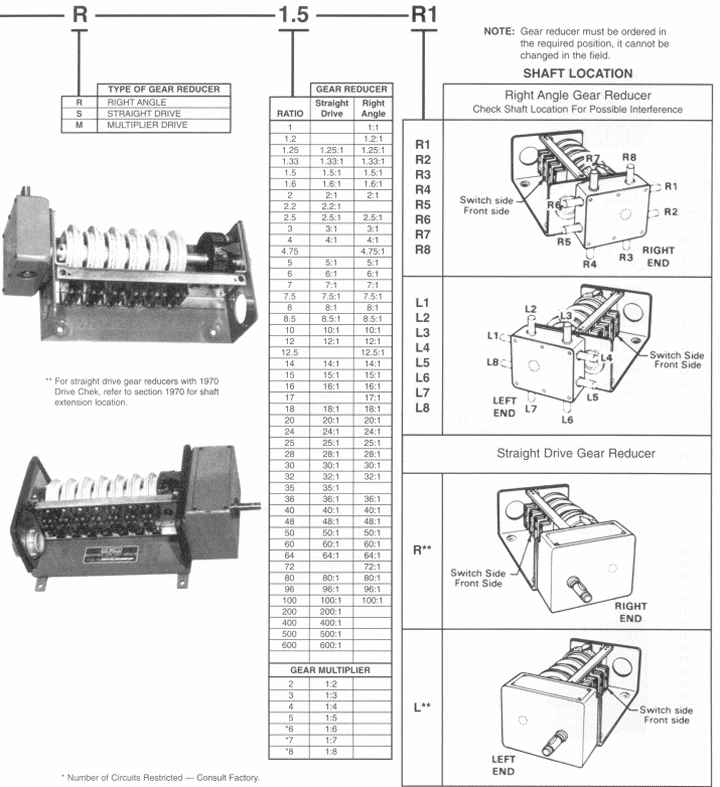

SHAFT EXTENSION
The Gemco Rotating Cam Limit Switch can be supplied with the desired shaft extension. The standard shaft extension can be specified in the catalog numbering system on page 8.
To determine the shaft extension symbol, the Rotating Cam Limit Switch must be viewed from the switch side of the assembly as shown.
|
|
The shaft extension can be specified as either:
L= Left shaft extension
R= Right shaft extension
D= Double shaft extension (both ends)
X= No shaft extension opposite the gear box
V= Shaft extension opposite gear box
|

|
SWITCH TYPE
The Gemco Precision Snap Switches are specifically designed for industrial duty applications where reliability, ease of wiring and millions of trouble free cycles are required.
The Gemco Rotating Cam Limit Switch can be supplied with either a basic single pole double throw (S.P.D.T.), double pole double throw (D.P.D.T.) or a combination of both types.
A Plug-In Socket can be supplied with either the S.P.D.T. Or D.P.D.T. switches.
NOTE: REFER TO CATALOG SECTION 1950 FOR FURTHER DETAILS ON SNAP SWITCH PARTS AND OPTIONS.
|
|
The type of snap switch can be specified in the catalog numbering system on page 8.
SP = Single pole double throw
DP = Double pole double throw
SPP = Single pole double throw with a plug-in socket
DPP = Double pole throw with a plug-in socket
The Plug-In Socket eliminates error due to disconnecting and connecting wires during replacement of the snap switch. A marking strip is supplied with each plug-in socket for ease of wire identification.
|
Switch Replacement is Recommended Every 15 Million Cycles.
|
ADDING A TIMING DIAL
SELECTING THE CORRECT SIZE ENCLOSURE

|

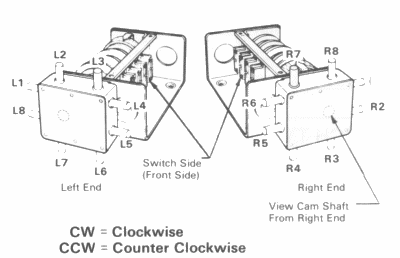

DETERMINING DIRECTION OF A CAM SHAFT - TIMING DIAL ROTATION
|
RIGHT ANGLE GEAR REDUCER ROTATION
Rotation Input Shaft Versus Cam Shaft
| Gear Reducer Positions |
Gear Reducer Input Shaft Rotation |
Cam Shaft Timing Dial |
| R1 or L1 |
CW |
CW |
| CCW |
CCW |
| R2 or L2 |
CW |
CCW |
| CCW |
CW |
| R3 or L3 |
CW |
CW |
| CCW |
CCW |
| R4 or R4 |
CW |
CCW |
| CCW |
CW |
| R5 or L5 |
CW |
CW |
| CCW |
CCW |
| R6 or L6 |
CW |
CCW |
| CCW |
CW |
| R7 or L7 |
CW |
CW |
| CCW |
CCW |
| R8 or L8 |
CW |
CCW |
| CCW |
CW |
|
|

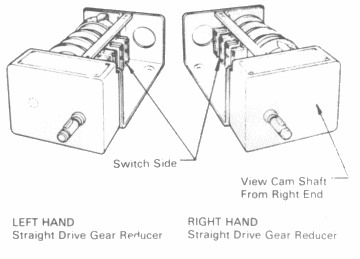

SRAIGHT DRIVE GEAR REDUCER
Input Shaft Rotation Versus Cam Shaft Rotation
| Straight Driver Gear Reducer |
Right End |
CW |
CCW |
| CCW |
CW |
| Left End |
CW |
CW |
| CCW |
CCW |
| All Ratios From 1.25:1 to 3:1 |
Right End |
CW |
CW |
| CCW |
CCW |
| Left End |
CW |
CCW |
| CCW |
CW |
| All Ratios From 4:1 to 8.5:1 |
Right End |
CW |
CW |
| CCW |
CCW |
| Left End |
CW |
CCW |
| CCW |
CW |
| All Ratios From10:1 to 600:1 |
Right End |
CW |
CW |
| CCW |
CCW |
| Left End |
CW |
CCW |
| CCW |
CW |
| All Gear Multipliers From 1:2 to 1:3 |
Right End |
CW |
CCW |
| CCW |
CW |
| Left End |
CW |
CW |
| CCW |
CCW |
| All Gear Multipliers From 1:4 to 1:8 |
Right End |
CW |
CW |
| CCW |
CCW |
| Left End |
CW |
CCW |
| CCW |
CW |
|
|
REPLACEMENT CAM ASSEMBLIES
Std. Cam Ass'y
Part No. ST-1178-C
|
Std. Cam Ass'y
Part No. ST-1140-C
|
STANDARD CAM ASSEMBLY
Part No. SD-1178-C
(includes two cams, part nos. P-356-B and P-357-B)
BLANK CAM ASSEMBLY Part No. SD-1140-C
(includes two blank cams, part no. P-271-B)
SPECIAL CAMS
A Blank Cam Assembly (Part No. SD-1140-C) can be supplied in place of the Standard Cam Assembly, (Part No. SD-1178-C) at no additional charge, when specified. Advise number required and location.
A DRAWING OF THE CAM SHAPE MUST BE FURNISHED WITH ORDER. Generally, two cams are required per circuit.
When ordering special cut cams, the customer will supply a detail of the cam profile and the electrical timing chart showing the con tact setting as required.
SPECIAL CONDUIT OPENING
Specify conduit size and location.
|
|
DESCRIPTION
The DRIVE-CHEK is a multi-purpose sub base that is mounted under a chain or belt driven mechanism, The unit serves three purposes; a broken chain or belt detector, a chain or belt tightener, and a shock and vibration isolator.
A Gemco Indicator Switch is provided with each DRIVE-CHEK Unit to indicate when a drive belt or chain failure has occurred. Shock and vibration from the machine to the hinge plate of the DRIVE-CHEK Unit are dampened by coil springs on one end of the hinge plate and an elastomeric support on the other end.
The springs also maintain a constant tension in the drive belt or chain, DRIVE-CHEK is of rugged welded construction and is painted to prevent corrosion. The drive chain or belt can be attached to the mechanism being driven from either above or below the DRIVE-CHEK base.
The DRIVE-CHEK base can be purchased as a separate item for field mounting or factory assembled to the 1980 camswitch. If factory installation is desired, order as separate item and specify as being assembled in the description.
A Gemco single pole double throw switch with mounting plate is supplied with each DRIVE-CHEK unit and can be easily mounted inside the Gemco Rotating Cam Limit Switch enclosure. A Gemco double pole double throw switch can also be supplied.
|
NUMBER
OF
CIRCUITS |
A |
A-S |
A-R |
B |
C |
D |
E |
L |
WEIGHT
APPROX.
GROSS* |
| 2 thru 4 |
9.28 |
12.12 |
9.38 |
4.42 |
6.50 |
5.00 |
3.12 |
.75 |
12 lb. |
| 5 thru 6 |
11.72 |
14.56 |
11.82 |
6.86 |
6.50 |
5.00 |
3.12 |
1.25 |
14 lb. |
| 7 thru 8 |
14.16 |
17.00 |
14.26 |
9.30 |
6.50 |
5.00 |
3.12 |
1.25 |
16 lb. |
| 9 thru 12 |
19.04 |
21.88 |
19.14 |
14.18 |
6.50 |
5.00 |
3.12 |
1.25 |
21 lb. |
| 13 thru 16 |
25.45 |
28.29 |
25.55 |
20.60 |
7.00 |
5.50 |
3.40 |
2.00 |
35 lb. |
| 17 thru 20 |
30.33 |
33.17 |
30.43 |
25.48 |
7.00 |
5.50 |
3.40 |
2.00 |
46 lb. |
| 21 thru 24 |
35.21 |
38.05 |
35.31 |
30.36 |
7.00 |
5.50 |
3.40 |
2.00 |
55 lb. |
| 25 thru 28 |
41.62 |
44.46 |
41.72 |
36.76 |
7.00 |
5.50 |
3.40 |
2.00 |
|
| 29 thru 32 |
46.50 |
49.34 |
46.60 |
41.64 |
7.00 |
5.50 |
3.40 |
2.00 |
|
| 33 thru 36 |
51.38 |
54.22 |
51.48 |
46.52 |
7.00 |
5.50 |
3.40 |
2.00 |
|
| 37 thru 40 |
56.26 |
59.10 |
56.36 |
51.40 |
7.00 |
5.50 |
3.40 |
2.00 |
|
NOTE: Add 4 lbs. with Right Angle Gear Reducer. Add 6 lbs. with Straight Drive Gear Reducer.
|
| STRAIGHT DRIVE |
| RATIO |
X |
V |
RATIO |
X |
V |
| 1.25:1 |
2.71 |
2.07 |
32:1 |
3.82 |
2.26 |
| 2:1 |
2.63 |
2.07 |
35:1 |
3.82 |
2.32 |
| 2.2:1 |
3.13 |
2.07 |
40:1 |
3.82 |
1.88 |
| 3:1 |
2.80 |
2.07 |
48:1 |
3.82 |
2.01 |
| 4:1 |
4.13 |
2.07 |
50:1 |
3.82 |
2.07 |
| 5:1 |
4.38 |
2.07 |
80:1 |
3.82 |
2.44 |
| 6:1 |
4.30 |
2.07 |
96:1 |
3.82 |
2.32 |
| 7:1 |
4.55 |
2.07 |
100:1 |
3.82 |
2.07 |
| 8:1 |
4.51 |
2.07 |
200:1 |
3.82 |
2.07 |
| 8.5:1 |
3.99 |
2.07 |
400:1 |
3.82 |
2.07 |
| 10:1 |
3.82 |
1.88 |
500:1 |
3.82 |
1.91 |
| 12:1 |
3.82 |
2.01 |
600:1 |
3.82 |
1.76 |
| 14:1 |
3.82 |
2.13 |
1:2 |
2.63 |
2.07 |
| 15:1 |
3.82 |
2.19 |
1:3 |
2.80 |
2.07 |
| 16:1 |
3.82 |
2.26 |
1:4 |
4.13 |
2.07 |
| 20:1 |
3.82 |
1.88 |
1:5 |
4.38 |
2.07 |
| 24:1 |
3.82 |
2.01 |
1:6 |
4.30 |
2.07 |
| 25:1 |
3.82 |
2.07 |
1:7 |
3.34 |
2.13 |
| 28:1 |
3.82 |
2.13 |
1:8 |
3.57 |
2.07 |
| 30:1 |
3.82 |
2.19 |
|
|
|
|
| RIGHT ANGLE DRIVE |
| RATIO |
V |
RATIO |
V |
RATIO |
V |
RATIO |
V |
| 1:1 |
1.00 |
4.75:1 |
.906 |
15:1 |
1.250 |
36:1 |
1.437 |
| 1.2:1 |
1.375 |
5:1 |
.937 |
16:1 |
1.312 |
40:1 |
1.562 |
| 1.25:1 |
1.125 |
6:1 |
1.062 |
17:1 |
1.368 |
48:1 |
1.812 |
| 1.33:1 |
1.750 |
7:1 |
1.187 |
18:1 |
1.437 |
50:1 |
1.875 |
| 1.5:1 |
1.250 |
7.5:1 |
1.250 |
20:1 |
.937 |
60:1 |
1.156 |
| 1.6:1 |
1.625 |
8:1 |
1.312 |
24:1 |
1.062 |
64:1 |
1.218 |
| 2:1 |
1.500 |
10:1 |
.937 |
25:1 |
1.875 |
72:1 |
1.344 |
| 2.5:1 |
1.750 |
12:1 |
1.062 |
28:1 |
1.187 |
80:1 |
1.469 |
| 3:1 |
2.00 |
12.5:1 |
1.875 |
30:1 |
1.250 |
96:1 |
1.719 |
| 4:1 |
1.875 |
14:1 |
1.187 |
32:1 |
1.312 |
100:1 |
1.781 |
Consult factory for Gear Reducer dimensions.
|

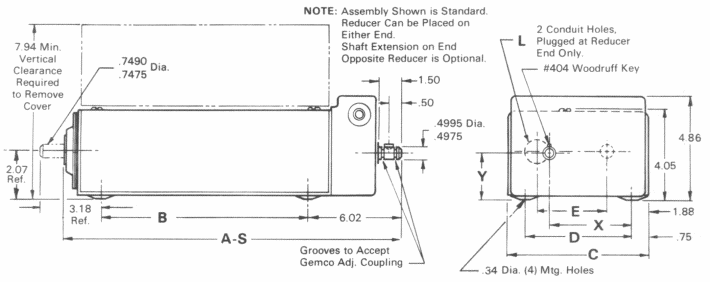

ENCLOSURE DIMENSIONS
NEMA 1 WITH STRAIGHT DRIVE GEAR REDUCER

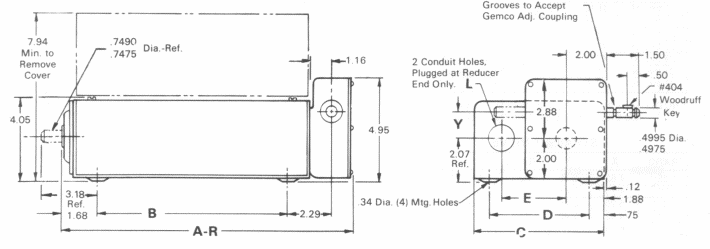

NEMA 1 WITH RIGHT ANGLE GEAR REDUCER
NOTE: Assembly shown as standard.
Reducer can be placed at either end.
Shaft extension on end opposite reducer - optional.
|
 |
|

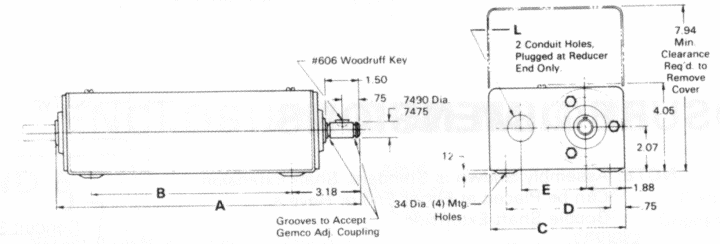

ENCLOSURE DIMENSIONS
NUMBER
OF
CIRCUITS |
A |
A-S |
A-R |
B |
C |
D |
E |
F |
G |
H |
L |
WEIGHT
APPROX.
GROSS* |
| 2 thru 4 |
9.69 |
12.53 |
978 |
5.45 |
10.12 |
9.38 |
3.69 |
2.06 |
1.58 |
13.64 |
.75 |
18 lb. |
| 5 thru 6 |
12.24 |
15.08 |
12.32 |
7.89 |
10.12 |
9.38 |
3.69 |
2.06 |
1.69 |
13.64 |
1.25 |
22 lb. |
| 7 thru 8 |
14.68 |
17.52 |
14.78 |
10.33 |
10.12 |
9.38 |
3.69 |
2.06 |
1.69 |
13.64 |
1.25 |
32 lb. |
| 9 thru 12 |
19.56 |
22.40 |
19.66 |
15.21 |
10.12 |
9.38 |
3.69 |
2.06 |
1.69 |
13.64 |
1.25 |
50 lb. |
| 13 thru 16 |
26.02 |
28.86 |
26.11 |
21.62 |
12.12 |
11.38 |
4.69 |
2.81 |
1.74 |
15.64 |
2.00 |
65 lb. |
| 17 thru 20 |
30.90 |
33.73 |
30.99 |
26.50 |
12.12 |
11.38 |
4.69 |
2.81 |
1.74 |
15.64 |
2.00 |
75 lb. |
| 21 thru 24 |
35.78 |
38.62 |
35.87 |
31.38 |
12.12 |
11.38 |
4.69 |
2.81 |
1.74 |
15.64 |
2.00 |
|
| 25 thru 28 |
42.19 |
45.02 |
42.27 |
37.80 |
12.12 |
11.38 |
4.69 |
2.81 |
1.74 |
15.64 |
2.00 |
|
| 29 thru 32 |
47.07 |
49.91 |
47.15 |
42.66 |
12.12 |
11.38 |
4.69 |
2.81 |
1.74 |
15.64 |
2.00 |
|
| 33 thru 36 |
51.95 |
54.79 |
52.03 |
47.54 |
12.12 |
11.38 |
4.69 |
2.81 |
1.74 |
15.64 |
2.00 |
|
| 37 thru 40 |
56.83 |
59.67 |
56.92 |
52.42 |
12.12 |
11.38 |
4.69 |
2.81 |
1.74 |
15.64 |
2.00 |
|
NOTE: Add 4 lbs. with Right Angle Gear Reducer. Add 6 lbs. with Straight Drive Gear Reducer.
|
| STRAIGHT DRIVE |
| RATIO |
X |
Y |
RATIO |
X |
Y |
| 1.25:1 |
4.83 |
2.45 |
32:1 |
5.94 |
2.64 |
| 2:1 |
4.75 |
2.45 |
35:1 |
5.94 |
2.70 |
| 2.2:1 |
5.25 |
2.45 |
40:1 |
5.94 |
2.26 |
| 3:1 |
4.92 |
2.45 |
48:1 |
5.94 |
2.39 |
| 4:1 |
6.25 |
2.45 |
50:1 |
5.94 |
2.45 |
| 5:1 |
6.50 |
2.45 |
80:1 |
5.94 |
2.82 |
| 6:1 |
6.42 |
2.45 |
96:1 |
5.94 |
2.70 |
| 7:1 |
6.67 |
2.45 |
100:1 |
5.94 |
2.45 |
| 8:1 |
6.63 |
2.45 |
200:1 |
5.94 |
2.45 |
| 8.5:1 |
6.11 |
2.45 |
400:1 |
5.94 |
2.45 |
| 10:1 |
5.94 |
2.26 |
500:1 |
5.94 |
2.29 |
| 12:1 |
5.94 |
2.39 |
600:1 |
5.94 |
2.14 |
| 14:1 |
5.94 |
2.51 |
1:2 |
4.75 |
2.45 |
| 15:1 |
5.94 |
2.57 |
1:3 |
4.92 |
2.45 |
| 16:1 |
5.94 |
2.64 |
1:4 |
6.25 |
2.45 |
| 20:1 |
5.94 |
2.26 |
1:5 |
6.50 |
2.45 |
| 24:1 |
5.94 |
2.39 |
1:6 |
6.42 |
2.45 |
| 25:1 |
5.94 |
2.45 |
1:7 |
5.46 |
2.51 |
| 28:1 |
5.94 |
2.51 |
1:8 |
5.69 |
2.45 |
| 30:1 |
5.94 |
2.57 |
|
|
|
|
| RIGHT ANGLE DRIVE |
| RATIO |
Y |
RATIO |
Y |
RATIO |
Y |
RATIO |
Y |
| 1:1 |
1.00 |
4.75:1 |
.906 |
15:1 |
1.250 |
36:1 |
1.437 |
| 1.2:1 |
1.375 |
5:1 |
.937 |
16:1 |
1.312 |
40:1 |
1.562 |
| 1.25:1 |
1.125 |
6:1 |
1.062 |
17:1 |
1.368 |
48:1 |
1.812 |
| 1.33:1 |
1.750 |
7:1 |
1.187 |
18:1 |
1.437 |
50:1 |
1.875 |
| 1.5:1 |
1.250 |
7.5:1 |
1.250 |
20:1 |
.937 |
60:1 |
1.156 |
| 1.6:1 |
1.625 |
8:1 |
1.312 |
24:1 |
1.062 |
64:1 |
1.218 |
| 2:1 |
1.500 |
10:1 |
.937 |
25:1 |
1.875 |
72:1 |
1.344 |
| 2.5:1 |
1.750 |
12:1 |
1.062 |
28:1 |
1.187 |
80:1 |
1.469 |
| 3:1 |
2.00 |
12.5:1 |
1.875 |
30:1 |
1.250 |
96:1 |
1.719 |
| 4:1 |
1.875 |
14:1 |
1.187 |
32:1 |
1.312 |
100:1 |
1.781 |
Consult Factory for Gear Reducer Dimensions
|

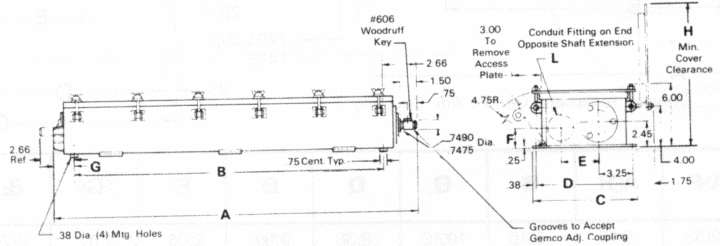

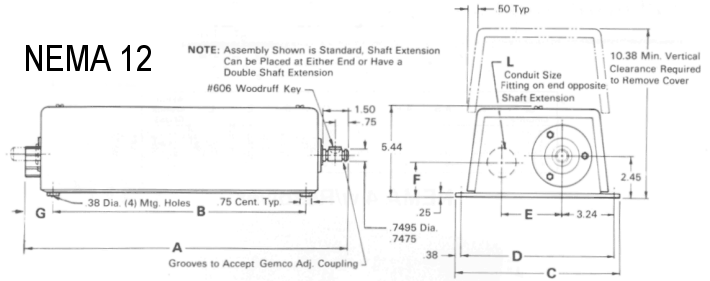

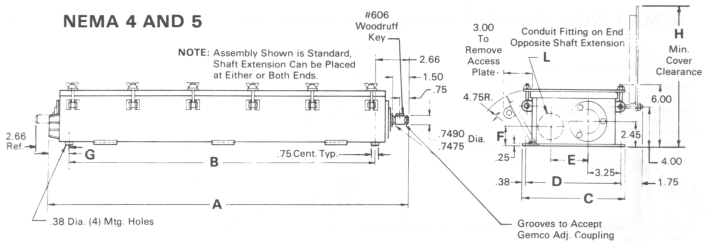

ENCLOSURE DIMENSIONS
NUMBER
OF
CIRCUITS |
A |
A-S |
A-R |
B |
C |
D |
E |
F |
G |
L |
WEIGHT APPROX.
GROSS |
| 2 thru 4 |
9.69 |
12.53 |
9.78 |
5.45 |
10.12 |
9.38 |
3.69 |
2.06 |
1.57 |
.75 |
18 lb. |
| 5 thru 6 |
12.24 |
15.08 |
12.32 |
7.89 |
10.12 |
9.38 |
3.69 |
2.06 |
1.69 |
1.25 |
24 lb. |
| 7 thru8 |
14.68 |
17.52 |
14.78 |
10.33 |
10.12 |
9.38 |
3.69 |
2.06 |
1.69 |
1.25 |
26 lb. |
| 9 thru 12 |
19.56 |
22.40 |
19.66 |
15.21 |
10.12 |
9.38 |
3.69 |
2.06 |
1.69 |
1.25 |
32 lb. |
| 13 thru 16 |
26.02 |
28.86 |
26.11 |
21.62 |
12.12 |
11.38 |
4.69 |
2.81 |
1.74 |
2.00 |
50 lb. |
| 17 thru 20 |
30.90 |
33.73 |
30.99 |
26.50 |
12.12 |
11.38 |
4.69 |
2.81 |
1.74 |
2.00 |
65 lb. |
| 21 thru 24 |
35.78 |
38.62 |
35.87 |
31.38 |
12.12 |
11.38 |
4.69 |
2.81 |
1.74 |
2.00 |
75 lb. |
| 25 thru 28 |
42.19 |
45.02 |
42.27 |
37.80 |
12.12 |
11.38 |
4.69 |
2.81 |
1.74 |
2.00 |
|
| 29 thru 32 |
47.07 |
49.91 |
47.15 |
42.66 |
12.12 |
11.38 |
4.69 |
2.81 |
1.74 |
2.00 |
|
| 33 thru 36 |
51.95 |
54.79 |
52.03 |
47.54 |
12.12 |
11.38 |
4.69 |
2.81 |
1.74 |
2.00 |
|
| 37 thru 40 |
56.83 |
59.67 |
56.93 |
52.42 |
12.12 |
11.38 |
4 69 |
2 81 |
1.74 |
2.00 |
|
NOTE: Add 4 lbs. with Right Angle Gear Reducer. Add 6 lbs. with Straight Drive Gear Reducer.
|
| STRAIGHT DRIVE |
| RATIO |
X |
Y |
RATIO |
X |
Y |
| 1.25:1 |
4.83 |
2.45 |
32:1 |
5.94 |
2.64 |
| 2:1 |
4.75 |
2.45 |
35:1 |
5.94 |
2.70 |
| 2.2:1 |
5.25 |
2.45 |
40:1 |
5.94 |
2.26 |
| 3:1 |
4.92 |
2.45 |
48:1 |
5.94 |
2.39 |
| 4:1 |
6.25 |
2.45 |
50:1 |
5.94 |
2.45 |
| 5:1 |
6.50 |
2.45 |
80:1 |
5.94 |
2.82 |
| 6:1 |
6.42 |
2.45 |
96:1 |
5.94 |
2.70 |
| 7:1 |
6.67 |
2.45 |
100:1 |
5.94 |
2.45 |
| 8:1 |
6.63 |
2.45 |
200:1 |
5.94 |
2.45 |
| 8.5:1 |
6.11 |
2.45 |
400:1 |
5.94 |
2.45 |
| 10:1 |
5.94 |
2.26 |
500:1 |
5.94 |
2.29 |
| 12:1 |
5.94 |
2.39 |
600:1 |
5.94 |
2.14 |
| 14:1 |
5.94 |
2.51 |
1:2 |
4.75 |
2.45 |
| 15:1 |
5.94 |
2.57 |
1:3 |
4.92 |
2.45 |
| 16:1 |
5.94 |
2.64 |
1:4 |
6.25 |
2.45 |
| 20:1 |
5.94 |
2.26 |
1:5 |
6.50 |
2.45 |
| 24:1 |
5.94 |
2.39 |
1:6 |
6.42 |
2.45 |
| 25:1 |
5.94 |
2.45 |
1:7 |
5.46 |
2.51 |
| 28:1 |
5.94 |
2.51 |
1:8 |
5.69 |
2.45 |
| 30:1 |
5.94 |
2.57 |
|
|
|
|
| RIGHT ANGLE DRIVE |
| RATIO |
Y |
RATIO |
Y |
RATIO |
Y |
RATIO |
Y |
| 1:1 |
1.00 |
4.75:1 |
.906 |
15:1 |
1.250 |
36:1 |
1.437 |
| 1.2:1 |
1.375 |
5:1 |
.937 |
16:1 |
1.312 |
40:1 |
|
| 1.25:1 |
1.125 |
6:1 |
1.062 |
17:1 |
1.368 |
48:1 |
1.812 |
| 1.33:1 |
1.750 |
7:1 |
1.187 |
18:1 |
1.437 |
50:1 |
1.875 |
| 1.5:1 |
1.250 |
1 |
1.250 |
20:1 |
.937 |
60:1 |
1.156 |
| 1.6:1 |
1.625 |
8:1 |
1.312 |
24:1 |
1.062 |
64:1 |
1.218 |
2:1
|
1.500 |
10:1 |
.937 |
25:1 |
1.875 |
72:1 |
1.344 |
| 2.5:1 |
1.750 |
12:1 |
1.062 |
28.1 |
1.187 |
80:1 |
1.469 |
| 3:1 |
2.00 |
12.5:1 |
1.875 |
30:1 |
1.250 |
96:1 |
1.719 |
| 41 |
1.875 |
14:1 |
1.187 |
32:1 |
1.312 |
100:1 |
1.781 |
Consult Factory for Gear Reducer Dimensions
|
ENCLOSURE DIMENSIONS
NEMA 1 w/Resolver
NUMBER
OF
CIRCUITS |
A |
A-S |
A-R |
B |
C |
D |
E |
L |
WEIGHT
APPROX.
GROSS* |
| 2 thru 4 |
11.72 |
14.56 |
11.82 |
6.86 |
6.50 |
5.00 |
3.12 |
1.25 |
14 lb. |
| 5 thru 6 |
14.16 |
17.00 |
14.26 |
9.30 |
6.50 |
5.00 |
3.12 |
1.25 |
16 lb. |
| 7 thru 8 |
19.04 |
21.88 |
19.14 |
14.18 |
6.50 |
5.00 |
3.12 |
1.25 |
21 lb. |
| 9 thru 12 |
25.45 |
28.29 |
25.55 |
20.60 |
7.50 |
5.50 |
3.40 |
2.00 |
35 lb. |
ENCLOSURE DIMENSIONS
NEMA 4 w/Resolver
NUMBER
OF
CIRCUITS |
A |
A-S |
A-R |
B |
C |
D |
E |
F |
G |
H |
L |
WEIGHT
APPROX.
GROSS* |
| 2 thru 4 |
12.24 |
15.08 |
12.32 |
7.89 |
10.12 |
9.38 |
3.69 |
2.06 |
1.69 |
13.64 |
1.25 |
22 lb. |
| 5 thru 6 |
14.68 |
17.52 |
14.78 |
10.33 |
10.12 |
9.38 |
3.69 |
2.06 |
1.69 |
13.64 |
1.25 |
32 lb. |
| 7 thru 8 |
19.56 |
22.40 |
19.66 |
15.21 |
10.12 |
9.38 |
3.69 |
2.06 |
1.69 |
13.64 |
1.25 |
50 lb. |
| 9 thru 12 |
26.02 |
28.86 |
26.11 |
21.62 |
10.12 |
11.38 |
4.69 |
2.81 |
1.74 |
15.64 |
2.00 |
65 lb. |
ENCLOSURE DIMENSIONS
NEMA 12 w/Resolver
NUMBER
OF
CIRCUITS |
A |
A-S |
A-R |
B |
C |
D |
E |
F |
G |
L |
WEIGHT
APPROX.
GROSS* |
| 2 thru 4 |
12.24 |
15.08 |
12.32 |
7.89 |
10.12 |
9.38 |
3.69 |
2.06 |
1.69 |
1.25 |
24 lb. |
| 5 thru 6 |
14.68 |
17.52 |
14.78 |
10.33 |
10.12 |
9.38 |
3.69 |
2.06 |
1.69 |
1.25 |
26 lb. |
| 7 thru 8 |
19.56 |
22.40 |
19.66 |
15.21 |
10.12 |
9.38 |
3.69 |
2.06 |
1.69 |
1.25 |
32 lb. |
| 9 thru 12 |
26.02 |
28.86 |
26.11 |
21.62 |
12.12 |
11.38 |
4.69 |
2.81 |
1.74 |
2.00 |
50 lb. |
|
|
