IDEC

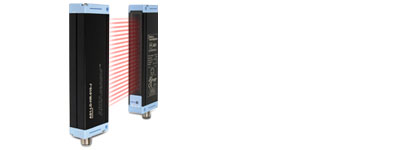

AS1 Light Grid Sensor

The photoelectric light grids of the AS1 series are crossed-beam area sensors able to detect all objects,as small as a 0.2mm thickness, inside a 100mm height, over operating distances reaching 3m between emitter and receiver.
AS1 area sensors are an ideal solution for detection of very small objects, even when moving and in varying positions inside a controlled height and width. The distance between emitter and receiver can
range from 0.3 to 2.1m.

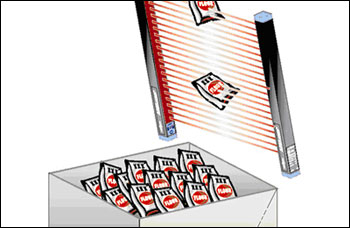

With their short response time, ultra-compact AS1 light grids are perfect for fast conveyor lines, such as insertion and downloading lines, and for detection and counting of objects in random positions.

Common Applications:

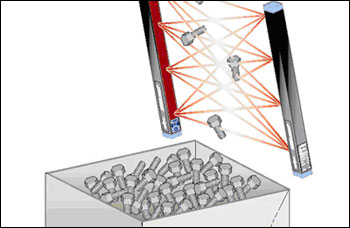

• Area sensors with crossed beams
• 100mm height
• Operating distance 3m
• 0.2mm minimum detectable object thickness
• PNP output and Scan mode input
