Programming Software

WindO/I NV2

WindO/I-NV2 is IDEC's screen creation software for the HG1F, HG2F, HG3F and HG4F operator interfaces (touch screen displays.) WindO/I-NV2 is used to create projects or programs that layout display screens for the O/Is. Using this window based program, any of IDEC's touch screens can display information from a PLC, process status, or can be used to input data with virtual switches or keypads to make changes to a process.

WindO/I-NV2 is easy and intuitive. Many of the processes are self-explanatory and guide you from step-to-step as you configure the O/I. The help menus are simple, straightforward, and are a good resource for getting additional information.

Creating colorful displays has never been easier. With Symbol Factory you have 5000 built in images for your disposal. You can also import almost any Bitmap or JPEG file into your project.

If for some reason you can not use one of IDEC's acclaimed PLCs, WindOI/-NV2 comes with many communication drivers to talk to other PLCs such as Allen-Bradley, Omron, Modicon, GE Fanuc, Aromat, Siemens, Keyence, Koyo and many others.

Note: Only original purchases of version 2.3x, 2.4x and 2.5x contain Symbol Factory Library. Not included in purchased versions previous to 2.3x.

• Built-in Serial and Network Protocols
• Pass-thru function
• Download, upload & view OI via Ethernet
• Debug function
• Over 5000 built-in bitmap library
• Supports Windows Fonts
• Supports Multiple Languages
• Supports Scripting
• Intuitive Drag & Drop Functionality
• Flexible Screen Display for Efficient Editing
• Workspace – easy to manage projects & screens
• Download/Upload project to CF Card
• Operates on Windows Vista, XP, ME, 2000, 98, 95 & Win NT v4.0
• Free Upgrades

Documents and Downloads
WindO/I NV2 Catalog

An IDEC PLC will save you both. All IDEC micro controllers are programmable with WindLDR® ladder logic software. This icon-driven programming tool combines logic and intuition with an incredibly easy-to-use interface to allow you to take advantage of every MicroSmart feature. Even without ladder program experience, you can use the built-in editors, shortcuts and debuggers to configure programs. Lose the extra costs of engineering, installation and maintenance and get right to work!

WindLDR® is an excellent, long-term investment for your control solutions. It programs every IDEC PLC, so it’s adaptable to whatever hardware you need today and down the road. Software upgrades are always free for registered users.

Online editing and programming

Shutting down for minor changes can be a major hassle, so WindLDR allows you to edit and download programs while the PLC is still in Run mode. You’ll be able to write new values to counters, timers and registers at any time without switching between editor mode (for programming) and monitor mode.

(Requires Flash 8 plug-in - 403KB)

Simulation Mode

Test your program in WindLDR to guarantee that it works the way you expected, rather than downloading it to your PLC for a test run.

(Requires Flash 8 plug-in - 213KB)

Custom Monitor Dialog

Compile and enter a list of the parameters you want to monitor, then save it and access it again and again, instead of reentering your data every time.

(Requires Flash 8 plug-in - 319KB)

Simple-to-use editors

Use the tag editor to access and edit coil data. Edit comments and rung comments. Simulation mode Test your program in WindLDR to guarantee that it works the way you expected, rather than downloading it to your PLC for a test run.

Comment download

When you transfer your program to the PLC, you have the option to include any accompanying comments too. User programs can be downloaded with the comments attached to operands and rungs; the documentation is stored in the processor. With comment data, you can review programming codes for clarification and streamlined maintenance. Custom monitor dialog boxCompile and enter a list of parameters you want to monitor, then save it and access it again and again, instead of re-entering your data every time.

Verify Program

Compare programs between PLC and PCThis great debugging tool allows you to run a comparison without uploading the whole program from the PLC back to your PC. If there’s a chance your program has been corrupted or tampered with, that’s a chance you don’t want to take.

User-friendly interfaces

Icon-based toolbars and drag-and-drop functionality make basic ladder programming accessible to anyone. But WindLDR also shows you how to display parameters and settings and how to input your parameters, and the built-in shortcuts and tutorials will keep you on the right track.

Documents and Downloads
WindLDR Catalog

______________________________________________________________________________________________

WindLGC

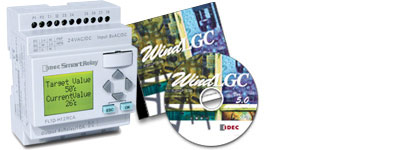

WindLGC is the exclusive programming software for the IDEC SmartRelay using Windows®.

Simplicity

Create, simulate, test and save your program in just a matter of seconds using drag and drop functions.

Control

Choose either function block or ladder programming, but keep in mind that you can always convert from one to the other with just the click of an icon. Offline program simulation (without the need for an actual unit) enables testing of the entire program from a PC, or you can test and monitor your IDEC SmartRelay online.

Documentation

You can create and save your WindLGC program as a .pdf or .jpg file. Professional documentation is included with all necessary configuration information such as comments and program settings.

• Function blocks
• Drag and drop simplicity
• Compatible with Windows 95, Windows 98 and NT, 2000, ME, XP
• Offline program simulation
• Boolean logic
• Tag name editor

Documents and Downloads
WindLGC Catalog
WindLGC Brochure
______________________________________________________________________________________________

WindSRV
