Immediate indication of process status is a must in any application. Realize this goal with Signalight towers that offer 360 degree visibility from any direction or the SLC series panel mounted pilot light arrays which provide for a more detailed local indication. Both offer a variety of configurations, and either LED or incandescent lamp illumination.
______________________________________________________________________________________________
Annunciator Panels

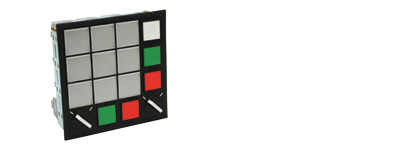

SLC30 Series
Overview
IDEC's SLC30 series offers an alternative to mounting multiple pilot lights and pushbuttons into discrete cutouts. Based on a 30mm square building block, SLC30's are configurable up to 200 windows. By including optional switch units within the matrix, many panel designs can be implemented with only one panel cutout, resulting in cost savings and a cleaner panel. A variey of windows sizes are available and can be mixed in a single unit. Lamps are available in either Incandescent or LED, and can be full voltage (6V, 12V, or 24V AC/DC) or incorporate a transformer (120V or 240V AC). All terminations are via screw terminals and standard jumper bars help simplify wiring.
Key Features
Combine multiple pilot lights and pushbuttons into a single panel cutout
LED or Incandescent illumination
6V, 12V, or 24V AC/DC; 120V or 240V AC
Up to 200 windows (10 rows by 20 columns)
Variety of window sizes and pushbuttons can be combined in almost any combination
Multi-layer lens construction allows for several engraving options
Momentary Pushbuttons, Selector Switches, or Key Switches
Documents and Downloads SLC30 Catalog
______________________________________________________________________________________________

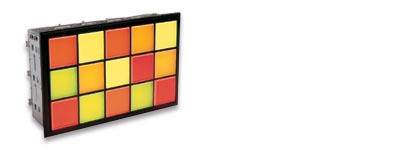

SLC40
Overview
The SLC40 series offers an alternative to mounting multiple pilot lights into discrete cutouts. Based on a 40mm square building block, units can be built up to 105 windows. Featuring oversize windows, tilt down lens frames to enhance visibility from below, and multiple window sizes that can be mounted collectively, the SLC40 series can offer a solution for almost any panel indicating requirement. By integrating multiple pilot lights into one device, cost savings can be realized in panel layout and design time. Lamps are available in LED or incandescent bulbs, and can be full voltage (6V, 12V, 24V AC/DC) or incorporate a transformer (120V or 240V). All terminations are via screw terminals and standard jumpers help simplify wiring.
Key Features
Combine multiple pilot lights into a single matrix
LED or Incandescent Illumination
Up to 105 windows (7 rows by 15 columns)
Variety of window sizes can be combined in almost any combination
Tilt-down windows enhance window visibility from below
Multiple layer lens construction allows for several engraving options
Documents and Downloads SLC30 Catalog
______________________________________________________________________________________________
SignaLight Towers

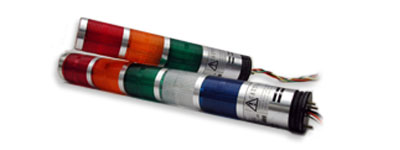

56MM LT1 Series
Overview
IDEC's SignaLight light towers offer a cost-competive solution to your light tower demands. Available from 1 to 5 tiers with either LED or incandescent lamps, they feature easy-to-replace lamps and a unique, built-in, rubber vibration-damper. Models are available with a steady (non-flashing) function or with a built-in flashing circuit that allows any combination of flashing and non-flashing tiers. Ideal for such applications as automated assembly and packaging machines, conveyor systems, and CNC machinery. SignaLights provide a clear and obvious indicator of machine status from anywhere on a factory or office floor.
Key Features
Flashing and steady units available
Five color choices: green, blue, red, white, and yellow
LED or incandescent lamps using BA15D lamp base
Easy lamp replacement (and ability to interchange LED and incandescent lamps)
Variety of mounting options including L-bracket, conduit, or horizontal surface
Built-in rubber vibration damper
NPT conduit adaptors for 1/2" and 3/4" pipe
UL and c-UL listed
Documents and Downloads SLC30 Catalog
______________________________________________________________________________________________

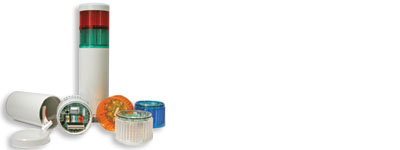

70 MM LT7 Series
Overview
The LT7 SignaLight series combines innovative LED technology with a six-color, modular-style assembly. Stackable and interchangeable modules make it easy to make changes and modify combinations even after it’s installed on your machine. The simple design uses only nine modular components complete with alarm functions. And a new Lemon-Yellow color now gives you even more colors to choose from!
IDEC has also introduced several new product additions to its LT7 SignaLight series. The most exciting of these is a new strobe LED-lens module, which works with the 24V DC base units and pulses 77 times per minute! The strobe LED has a long life expectancy; provides added flexibility with five colors to choose from; and saves money compared with traditional xenon strobe modules.
Depending on specific requirements, the LT7 is available in 24 VDC or 90~250VAC steady and flashing models. The ultra-bright LEDs, IP65 protection and lead-free solder construction meet the most stringent operation safety and environmental requirements, as well as global approvals.
The LT7 series is the best signaling solution in the industry today, bringing added value to your machines, systems and applications.
Base Unit (with top cap)
LT7B-D24 24VDC Steady Unit
LT7B-D24FB 24VDC Flashing Unit with Audible Alarm
LT7B-A250 90-240VAC Steady Unit
LT7B-A250FB 90-240VAC Flashing Unit with Audible Alarm

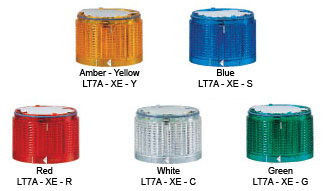

LED-Strobe Modules(24 VDC)

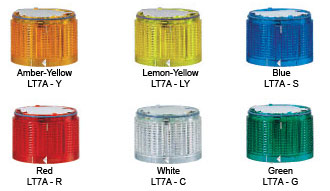

LED-Lens Modules
Key Features
70mm diameter
Ultra bright LEDs, including new Lemon-Yellow color*
New LED-strobe modules(24VDC)
Unique contact design ensures longer life
Fast and easy assembly
Optional adjustable alarm
Lead-free design
IP65 environmental protection
NEMA 4, 4x, 13 rating
Color-coded wiring terminals
Mounting accessories available including new 1/2" NPT adapter and wall mounting adapter
UL/c-UL Listed, CE marked
Built-in rubber vibration damper
NPT conduit adaptors for 1/2" and 3/4" pipe
UL and c-UL listed
*Note: Maximum 5 LED modules per base and Lemon-Yellow interchanges with Amber-Yellow only
