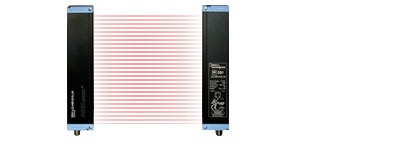

DS1 Light Grid Sensor

The DS1 AREAscan™ sensor is a compact multibeam light grid suitable for detection and measurement of objects with different shapes and sizes. DS1 is available with 100mm height, 5mm resolution and an operating distance of 2.1m.
The electronics are fully integrated and as a result, no external drivers are required. A value is supplied through the analog 0-10V output that is proportional to the number of interrupted beams.
The PNP digital output is activated every time a beam between emitter and receiver is interrupted. The response time, less than 3ms, depending on the height and measurement resolution, allows installation
on the fastest machines and processes.

Common Applications:

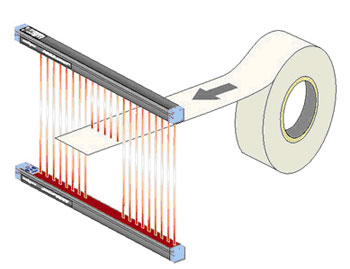

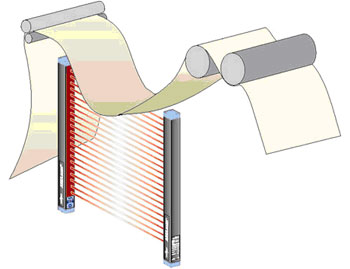

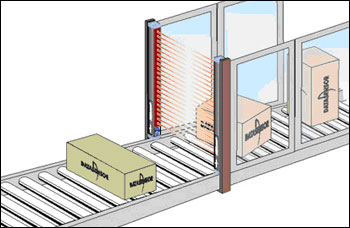

• Position and dimension measurement
• 5mm resolution and 1ms response time
• 100 to 300mm height
• Operating distance up to 2.1m
• PNP digital and 0-10V analog outputs
