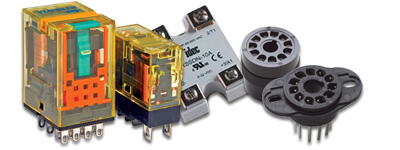

Designed with attention to every detail, IDEC relays are manufactured to ensure precision and quality. Correlating sockets include multiple features for ease-of-use and can be DIN rail, panel or PCB mounted. Each socket is designed to work with IDEC timers and relays, but will work equally well with any fitting component.

Click to jump to a section of the page
General Purpose Relays
PCB Relays
Solid State Relays Latching Relays
Sockets
_____________________________________________________________________________________________

General Purpose Relays

RJ Series

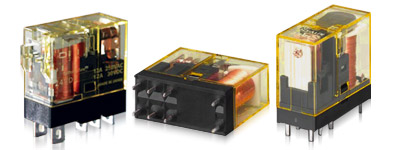

RJ relays, the newest addition to our relay family, were designed with the same attention-to-detail IDEC is known for. The most recent IDEC innovation is a return spring structure for the RJ relays that eliminates unnecessary weak points improving durability, and increasing electrical conductivity and service life. Available in both Plug-in blade or PCB type, SPDT or DPDT (Form A or Form C) configuration, and up to 16A rated contact, there are no regrets once you design in an RJ relay.

Unique light guide to give you a brighter and more noticeable status indicator from multiple directions.

Unique return spring structure allows usage for better materials thus higher contact rating.

With 3 times the life expectancy of similar units, you worry less about maintenance and replacing relays.

Matching sockets are available. Din-Rail or Panel Mount comes in screw terminal or IEC finger safe models. PCB socket allow you remove relay easily from printed circuit board.

• RJ Slim GP Relay ideal for space saving application
• Compact size: 12.7mm width
• SPDT or DPDT (Form C or Form A contacts¹)
• Up to 16A rated contacts¹
• Electrical life: 200,000 cycles (AC Load) and 100,000 cycles (DC Load)
• Mechanical life: 30 million cycles (AC coil) and 50 million cycles (DC coil)
• Highly visible Indicator LED using IDEC's unique light guide design¹
• RoHS Complaint (2002/95/EC)

  ¹On select models. Please consult part number table or configure part in parts list.

Documents and Downloads
RJ Series Catalog
RJ Series Sales Brochure
___________________________________________________________________________________________

RJ PCB Series

RJ PCB relays, the newest addition to our relay family, were designed with the same attention-to-detail IDEC is known for. The most recent IDEC innovation is a return spring structure for the RJ PCB relays that eliminates unnecessary weak points improving durability, and increasing electrical conductivity and service life.

• RJ Slim GP Relay ideal for space saving application
• Compact size: 12.7 x 25.5 x 28.8mm
• Long electrical life and mechanical life
• Electrical life: 200,000 cycles (AC Load) and 100,000 cycles (DC Load)
• Mechanical life: 30 million cycles (AC coil) and 50 million cycles (DC coil)
• RoHS Complaint (2002/95/EC)

Documents and Downloads
RJ PCB Series Data Sheet

_____________________________________________________________________________________________

RU Series

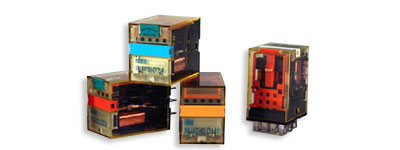

The adaptable RU series are available in either 2 pole (DPDT) or 4 pole (4DPDT) models. Both RU2 and RU4 models have multiple standard features, including a non-polarized green indicator LED, a mechanical indicator flag, an easily accessible and replaceable marking plate, and a manual latching lever, coded orange/red for AC coil and green/blue for DC coil.

What sets the RU relays apart from other relays is the unique internal construction. There is no internal wiring, which means no weak solder points and a completely lead-free manufacturing process. The contacts are cadmium-free as well, making the RU relays environmentally-friendly. All RU relays are also manufactured by a totally automated assembly process which means the relay is of the highest quality because the possibility of human error has been eliminated during the manufacturing process.

IDEC has developed an innovative and simple method of identifying the RU series of relays. Several different colored marking plates are now available that can be used to replace the standard marking plate found on the top of the RU relay.


These marking plates are available in yellow (standard color), green, orange, blue or white. In addition, the marking plates can be further identified by using either a pencil or pen to write directly on them. You can, in effect, create your own customized label that is actually part of the relay. The marking plates are located on the top of the relay rather than on the socket.

In addition, IDEC has developed the RU relay with low signal switching bifurcated contacts. The RU42S model has a maximum contact rating of 3 amps 250V AC while maintaining a minimum switching load of 0.1mA @ 1V DC, allowing you to use this relay for all your dry circuit switching needs.

• RU2: DPDT, 10A (250V AC/30V DC)
• RU4: 4PDT, 6A (250V AC/30V DC)
• RU42: 4PDT bifurcated 3A (250V AC/30V DC) for dry contact circuits
• Quality design - solder free construction (lead free)
• Latching & momentary check button levers
• Non-polarized green indicator LED & mechanical indicator flag standard
• AC/DC color coded manual latching levers
• Snap-on marking plates available in yellow (standard color), green, orange, blue or white for easy labeling & identification
• Available in 12V, 24V, or 110V DC; 24V, 110-120V, 220-240V AC

Documents and Downloads
RU Series Catalog
RU Series Sales Brochure
_____________________________________________________________________________________________

RR Series

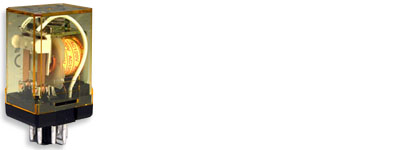

RR series relays provide reliable switching for industrial loads. Using pure silver contacts, they are rated up to 10A and 240V AC. Terminals are available in two styles, 8 or 11 pin tubular (octal) or .187" plug-in. Coil voltages range from 6VDC to 240VAC.

Carrying worldwide approvals including UL, CSA, TUV and CE marking (TUV and CE on tubular pin types only), they are ready to travel anywhere your application needs take them. Available options include manual check buttons, LED indicators, or side flange covers for direct surface mounting. When coupled with IDEC's high quality sockets, they form an unbeatable combination.

• High reliability and long service life
• SPDT, DPDT, or 3PDT pure silver contacts
• Available with octal (8-pin and 11-pin) or .187" blade plug-in terminals
• Worldwide approvals on octal (8-pin and 11-pin) models: UL, CSA, TUV, CE
• Options include check button for test operation and indicator light
• Mounting options include flange mounting, DIN socket, or panel mount socket

Documents and Downloads
RR Series Catalog
RR Series Sales Brochure
_____________________________________________________________________________________________

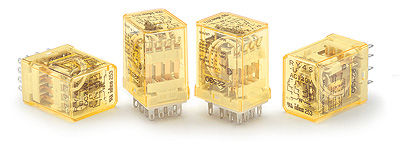

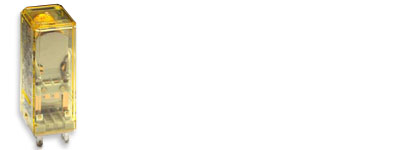

RY/RM Series

The RY/RM series of relays satisfy applications for lower level switching needs such as pilot lights or logic level devices. The RY has standard gold plated contacts to prevent contact oxidation from affecting circuit continuity, while optional Palladium alloy bifurcated contacts reduce contact bounce and allow circuit switching in the micro-amp range.

Terminated with a standard footprint of blade plug-in terminals or with PCB pins, the RY/RM series fit into many competitors' sockets as well. Available in 4PDT or two different arrangements of DPDT: the RM2 uses the same socket as the RY4, but the RY2 is a true two pole relay that occupies half the width of the four pole. Available options include manual check buttons, LED indicators, or top flanged dust covers for direct surface mounting.

• High density, 4PDT in a package less than .840" wide
• 4PDT and a "true" DPDT model
• RY Series gold plated contacts standard, Palladium alloy bifurcated crossbar contacts optional for extremely low level applications
• RM2 features fine silver 5A contacts
• Blade plug-in or PCB terminals
• Options include indicator light, check button, and top mounting bracket
• Mounting options include top mounting, DIN socket, PCB socket, or panel mount socket

Documents and Downloads
RY/RM Series Sales Brochure
RY/RM Series Catalog
_____________________________________________________________________________________________

PCB Relays

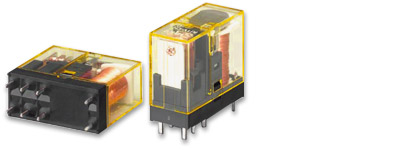

RJ PCB Series

RJ PCB relays, the newest addition to our relay family, were designed with the same attention-to-detail IDEC is known for. The most recent IDEC innovation is a return spring structure for the RJ PCB relays that eliminates unnecessary weak points improving durability, and increasing electrical conductivity and service life.

• RJ Slim GP Relay ideal for space saving application
• Compact size: 12.7 x 25.5 x 28.8mm
• Long electrical life and mechanical life
• Electrical life: 200,000 cycles (AC Load) and 100,000 cycles (DC Load)
• Mechanical life: 30 million cycles (AC coil) and 50 million cycles (DC coil)
• RoHS Complaint (2002/95/EC)

_____________________________________________________________________________________________

RQ Series

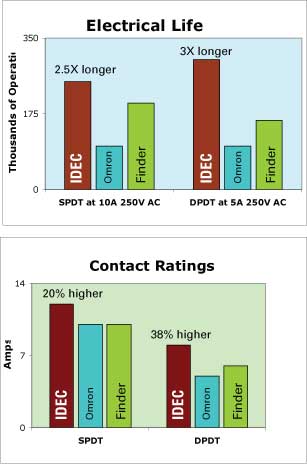

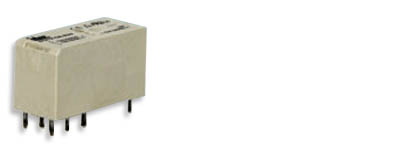

IDEC’s RQ relays are low-profile, PCB relays that provide quality within a compact package. RQ relays are small, yet maintain high contact ratings and long operational life. For larger power needs, a 16A model is also available.

• RQ PCB Relay ideal for compact high current applications
• Compact size: 29 x 12.7 x 15 mm
• Contact rating: 12A (SPDT) 8A (DPDT) 16A (SPDT High Capacity Version)
• Long electrical and mechanical life
• Electrical life: 100,000 cycles at full resistive load
• Mechanical life: 10 million cycles at no load
• Lead Free
• Dust and solder flux protected
• UL Recognized, c-UL recognized, CE, EN complaint, and TUV

Documents and Downloads
RQ Series Catalog
RQ Series Sales Brochure
_____________________________________________________________________________________________

Solid State Relays

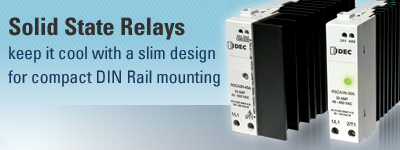

RSC Relays

RSC relays have technology to dissipate the heat away from main switching components, making them a great buy. Other relays may require you to add your own heat sink or deal with a burned out product, but the new RSC relays from IDEC have a built-in heat sink making them easy to install and get running. The heat sink, along with an epoxy-free design, eliminates the need to de-rate your relay and also increases its life expectancy. And an LED status indicator makes sure you can see it working.

The slim design of the RSC relays provides a compact unit for DIN Rail or panel mounting without wasting space. 20A and 30A current ranges are 22.5mm, while the relays with 45A current are 45mm. All RSC relays are UL recognized, CE marked, as well as being lead-free and RoHS compliant.

• Choice of 20A, 30A and 45A models
• Slim design allows for compact DIN rail or panel mounting
• Built-in heat sink
• Epoxy-free design and improved thermal impedance
• LED indicator
• Finger-safe terminals
• Zero voltage switching
• UL recognized, CSA Certifi ed, TUV Approved, CE Marked
• Lead-free and RoHS compliant
• EMC (Level 3) & IEC 62314 compliant

Documents and Downloads
RSC Series Catalog
_____________________________________________________________________________________________

RSS Series

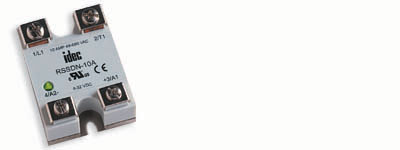

The "hockey puck" style RSS series of solid state relays allow switching of the most demanding loads. Highly resistant to inrushes, with a built-in snubber, the RSS series is ideal for switching loads such as lights and heaters. Available with either DC (4-32V) or AC (90-280V) inputs with output current ratings up to 90A. All models feature zero-voltage turn-on to reduce inrush current and a dual SCR switch (rather than a triac) for enhanced reliability and superior heat dissipation properties.

• Current ratings up to 90A at 660VAC
• AC (90-280V) or DC (4-32V) input
• Input current regulated 10mA
• Photo isolation of input and output (up to 4000V)
• Zero voltage turn on
• Dual SCR output with built-in snubber
• Optional fingersafe cover
• Worldwide approvals: UL, C-UL, TUV, CE
• LED status indicator standard

Documents and Downloads
RSS Sereis Catalog
RSS Series Sales Brochure
_____________________________________________________________________________________________

Latching Relays

RR2KP Relays

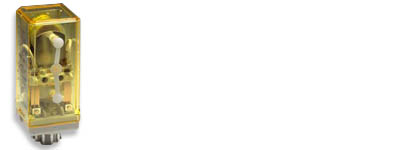

These magnetic latching relays have excellent self-holding performance and operate by pulse input so they maintain conditions even during power failures. They are available in AC and DC coil voltages up to 10A. DIN rail and panel mount sockets are available for a wide range of mounting applications.

• Contacts reated to 10A/250V AC, 10A/30V DC
• Standard octal base (11-pin) termination
• Coils rated for continuous duty
• High vibration and shock resistance
• Optional dual manual check button for circuit testing
• Dual coil / permanent magnet
• 10A

Documents and Downloads
RR2KP Catalog
_____________________________________________________________________________________________

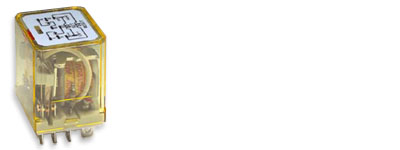

RH2L Relays

The smaller magnetic latching relays with blade or PC board terminations are still rated up to 10A. They operate by pulse inputs, which saves power and eliminiates the need for a continuous control voltage. DIN rail, panel, and PCB mount sockets are available for a wide range of mounting applications.

• Contacts rated to 10A/250V AC, 10A/20V DC
• Available with blade and PC mount terminals
• Compact miniature size saves board space
• Coils rated for continuous duty
• Built-in operation indicator to show set/reset condition
• 10A

Documents and Downloads
RH2L Catalog
_____________________________________________________________________________________________

RY2KS Relays

A miniature latching relay with a 14-pin ice cube base and DPDT contact configuration. Pulse input operation maintains conditions even during power failures. DIN rail, PCB, and panel mount sockets are available for a wide range of mounting applications.

• Contacts rated 3A/240V AC, 3A/30V DC
• Standard "ice cube" base, solder lug (14-pin) termination
• High vibration and shock resistance
• Excellent self-holding performance
• Optional dual manual check button for circuit testing
• Dual coil permanent magnet
• 5A

Documents and Downloads
RY2KS Catalog
_____________________________________________________________________________________________

Sockets

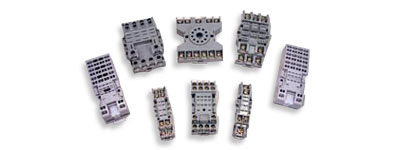

DIN Rail and Surface Mount Sockets

IDEC pioneered the popular and much copied DIN rail, snap-mount sockets. In fact, you've probably been relying on these high-quality IDEC sockets for years and just didn't know it. IDEC supplies sockets for many other manufacturers, and has done so for a long time. But if you're not certain you're getting the world's best-selling, highest-quality sockets available, it's time you plugged into IDEC.

• Worldwide Approvals: UL, CSA, TUV, CE
• UL94-V0 flame resistant material
• Models available in fingersafe versions (with IEC standard terminal numbering)
• Unbreakable nylon construction
• Rust-proof, double nickel-plated steel screws are available in applicable models (withstands 96 hour salt spray test)
• Hold-down springs and clips available for most models
• Receptacles with four contact points per blade
• Spring Clamp sockets available

Documents and Downloads
DIN Rail Catalog
____________________________________________________________________________________________

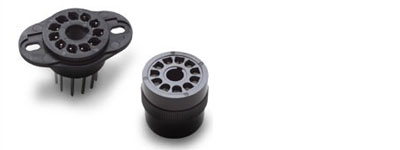

Panel Mount Sockets

Panel mounting sockets allow for easy relay or timer replacement from outside the panel without exposing personnel to live wiring. Ideal for such applications as test fixtures where relays of different voltages may need to be swapped on a regular basis. Available either as snap-in or screw-down mounting, and all models use pre-tinned solder terminals. Hold down springs are available for most models and pin arrangements accommodate several industry standard relay pin configurations.

• Through-panel mounting
• Hold down springs available for all models
• Industry standard pin arrangements
• Snap-in and screw-down models

Documents and Downloads
Panel Mount Sockets Catalog
_____________________________________________________________________________________________

PCB Mount Sockets

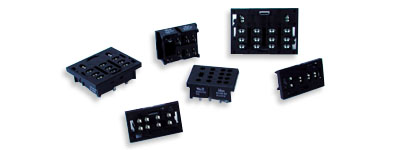

An alternative to soldering relays directly to a PC board, PCB sockets allow for easy replacement of relays or timers. Available in several industry standard pin arrangements (.110" and .187" blades). Hold down springs are available for all models, to ensure the relays stay in their place.

• Hold down springs available for all models
• Industry standard pin/receptacle arrangements

Documents and Downloads
PCB Mount Sockets Catalog
