IDEC

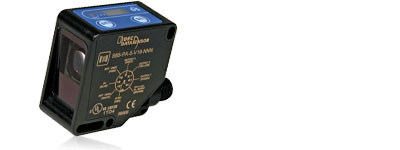

S65V Color Detection Sensor
Overview
The S65-V color sensor offers the best performance for color detection in a standard 50 x 50 x 25mm housing.
The sensor can memorize and recognize 3 colors on 3 independent channels. C (chromaticity) or C+I (chromaticity and intensity) detection algorithm and tolerance levels can be selected for each color.
Additional functions include keylock and synchronization with external events through a specific input. The control panel has two push-buttons for setting the sensor, LED outputs and a 4-digit display for messages and sensor configuration. Complete remote control is possible for the version with an RS485 serial interface, where the sensor can receive RGB chromatic information.
Common Applications: (click on image below to enlarge)
General Color Detection in Packaging application
Lid integrity checking in beverages industries
Sealing Checking for bottling applications
Color detection with transparent materials
Key Features
- 3 channel color sensor with C or C+I functions and 10 tolerance levels
- White light LED emission and RGB photoreceiver
- 3 independent NPN or PNP outputs and RS485 serial interface
- 2 push-button easy setting and 4-digit display
