IDEC

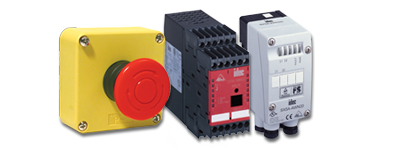

AS-Interface Safety at Work

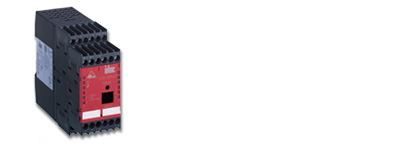

SX5A Safety Monitor

The SX5A Safety monitor allows you to easily connect AS-Interface safety products to an existing AS-Interface network while being able to meet EN954-1 Category 4. Easy to use software makes setup and configuration quick and simple.

The unit can be set for either Stop category 0 or 1 (stop category 0: when a warning signal is input, the safety relay is shut down instantly; stop category 1: when a warning signal is input, the safety relay is shut down after the machine driving part has moved to safe status)

• EN954-1 category 4 compliant
• Standard slaves and safety slaves can be used in the same network, and no new safety network is necessary
• Response time 40 ms maximum (time interval after the safety input of safety slave has been shut down until the safety output is turned off)
• A maximum of 31 safety slaves can be connected
• Stop category 0 or 1 can be selected
• Easily setup using Windows based configuration software

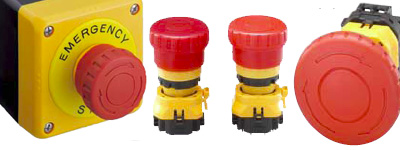

AS-Interface E-Stops

AS-Interface E-Stops from IDEC gives you the quality and variety of IDEC’s best E-stops. Compatible for any AS-Interface Safety at Work network, these E-stops allows you to easily connect to an existing network.

Models are available in your standard XW Series (22mm mounting holes with 40mm or 60mm mushroom heads), XA Series (16mm mounting holes with 29mm or 40mm mushroom heads) or FB Series (XW Series in Box Enclosure.)

All units are dual function (Push Pull and Push Lock-Turn Reset) and comply with IEC 61508 SIL3 (Functional safety of electrical/electronic/programmable electronic safety-related systems) and EN954-1 safety category 4 (Safety of machinery-Safety related parts of control systems).

• Complies with IEC 61508 SIL3 and EN954-1 safety category 4
• Space, wire, and labor-saving solutions for safety equipment
• Equipped with AS-Interface standard slave functions
• Dual function Push Pull and Push Lock-Turn Reset
• 1-IN (non-illuminated) and 1-IN/1-OUT (illuminated) types available
• XA 16mm series available with ø29mm and ø40mm mushroom buttons with IDC connection available
• XW series available with ø40mm and ø60mm jumbo mushroom buttons with IDC or Crimping connections available
• FB series plastic control stations XW series emergency stop switches with M12 connection available

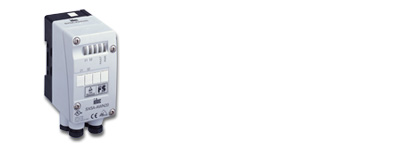

Communication Terminal

The SX5A Communication terminal allows you to easily connect a non AS-Interface product to an existing AS- Interface Safety at Work network.

With 2 inputs available on each unit, you can connect 2 different products to each terminal.

LED indicators provides the user quick glance of power and input status while standard cable piercing allows for easy installation on an existing network

• Connect non AS-Interface safety products, such as door interlocks or light curtains, to an AS-Interface Safety at Work network
• Power using standard AS-Interface power supply
• Indicator LED help identify operation and input status
• Two inputs are available per communication terminal
• Wire using standard cable piercing method
