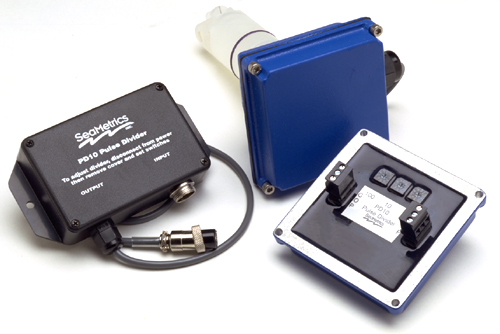

Seametrics PD10Seametrics


Divider for pulse meter / metering pump combinations

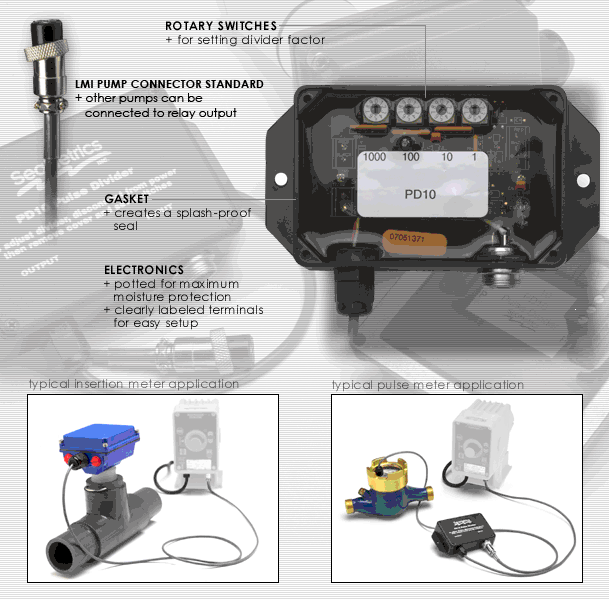

» Manufactured standard with an LMI pump connector (relay output available for use with other pumps)
» Allows easy modification of pulse rate from water meter
» Makes small/frequent pulse rate adjustments possible
» Works with M-Series pulse meters
» Alternatively, can be ordered pre-mounted on 80- or 100/200-Series flow sensors


Seametrics PD10 Features



Wall (Pump) Mount Epoxy-encapsulated ABS housing with cover
Meter Mount Cast aluminum sealed housing

Temperature 0° to 130°F (-18° to 55°C)

Divider Range 1 to 9999

Setting Mechanism Rotary switches

Power 7 to 24 Vdc

Maximum Load 20 mA at 24 Vdc

Maximum Input Frequency 350 Hz (pulses/second)

Maximum Output Frequency 8 Hz (pulses/second)

Output Solid state relay; 0-250V, 170 mA max AC/DC

Output Pulse Width 0.1 second

Input Connection
Wall SeaMetrics connector
Meter Terminal

Output Connection

Wall Pump connector on 24 inch lead
Meter Comes with 18 foot lead

Seametrics PD-10 Instruction Manual .PDF
