Seametrics

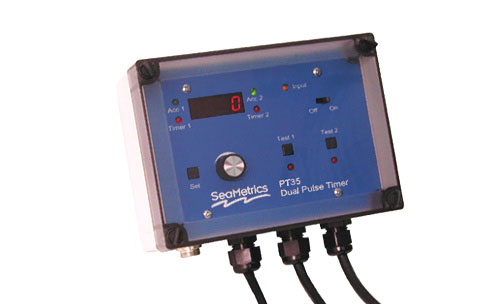

PT35

Counter-timers for water treatment applications
» For use with MJ-Series pulse meters or any of our insertion meters
» Microcontroller-based
» Glass-reinforced housing with clear weatherproof cover
» Exact digital time setting
» Dual counter/timer with optional sequential operation
» Plug-in outputs and power cord for convenience in cooling tower applications

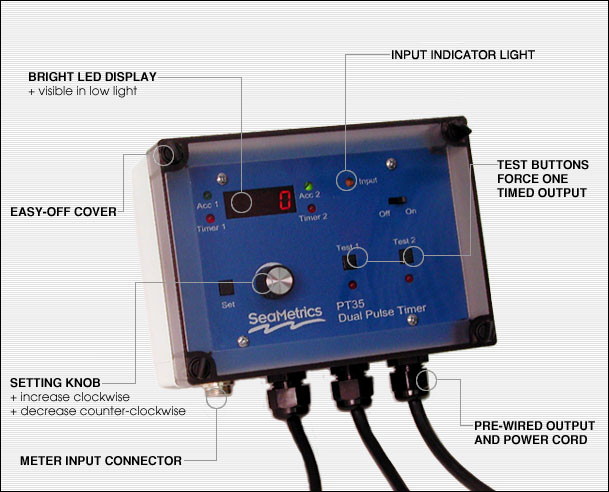

Features

Specifcations

Power 115 Vac Output (2) 115 Vac Accumulator Range 1 to 9,999 pulses Timer Range 1 to 9,999 seconds (167 min.) Enclosure 5" x 7" polycarbonate Maximum Input Frequency 1000Hz (1000 pulses/sec.) Relay Contact Rating 5 A resistive at 115 Vac, or 1/4 HP Sensor Power 12 Vdc Temperature 32° - 130° F   (0° - 55° C)

Seametrics PT35 Instruction Manual .PDF
