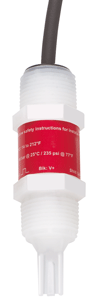

The 2350 Temperature Sensor has a one piece injection molded PVDF body that is ideal for use in high purity applications. It also outlasts metal sensors in aggressive liquids and eliminates the need for costly custom thermowells. These sensors are available with S3L (Signet Sensor Serial Link) digital output, or field-scaleable 4 to 20 mA output. Dual threaded ends (3/4 in. NPT) allow submersion in process vessels, or in-line installation with conduit connection. Integral adapters (sold separately) may be used to create a compact assembly with field mount versions of the Signet 8350 Temperature Transmitter.

Features:

• S3L or 4 to 20 mA Output
• One-piece injection molded SYGEF® PVDF body
• PT-1000 Platinum RTD in extended tip for quick response
• Dual threads for in-line or submersible installation

• Plating Bath Temperature Control
• Heat Exchange Monitor
• R.O. System Monitor
• D.I. System Monitor
• Hot/Cold Mixing System Monitor
• Data Acquisition
• Cooling Loops
• Effluent Monitoring
• HVAC
• Chemical Processing
