 Seametrics
SPX
Low flow, chemical resistant flow meter in sizes 3/8" to 1"
» Versatile square-wave signal connects to PLC's, counters, and SeaMetrics controls
» Only one moving part
» Sight flow indication
» Replaceable non-wetted solid-state pickup
» Wide flow range
Features
Specifications
| Connections |
Female NPT standard, SAE thread opt. |

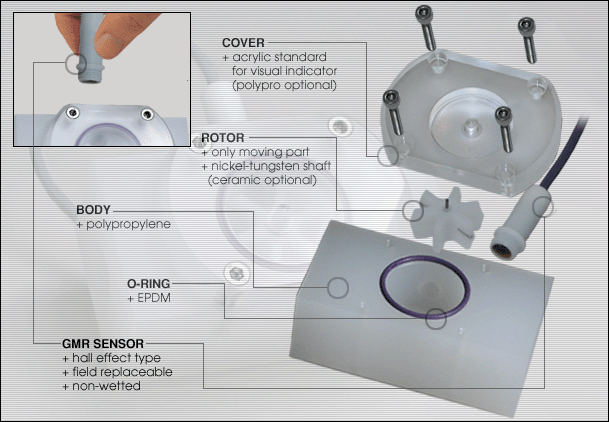

Materials
| Body |
Polypropylene |
| Cover |
Acrylic, Polypro opt. |
| Rotor |
PVDF |
| Shaft |
Nickel tungsten carbide, ceramic opt. |
| Bearings |
Ruby Jewels |
| Maximum Temperature |
160° F (70° C) |
| Maximum Pressure |
150 PSI (10 bar) |
| Max cable run |
2000 ft. (650 m) |
Flow Rates (GPM)
| 3/8" |
0.07 - 5 |
| 1/2" |
0.1 - 10 |
| 3/4" |
0.2 - 20 |
| 1" |
0.5 - 40 |
|
|
