| The single-point fitting enables users to install and extend a Flowline level switch through the top wall of the tank. Offered in PVC, PP and PVDF materials, the fitting is typically applied in bulk storage tanks, day tanks and waste sumps. Each fitting is built custom to your requirements. Select the appropriate material based upon your application liquid and specify the A-dimension, taking into consideration the installed sensor length. |
|
 |
|
|
Thermal or solvent welded fitting is built to your switch insertion length |
|
Offered in PVDF, PP and PVC material for maximum chemical compatibility |
|

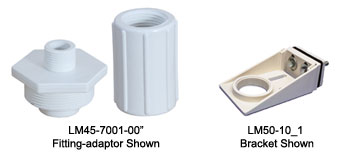

| Tech Tip |
| For easy field assembly, order the LM45-70_1-00" PVC plug fitting and sensor adapter. Solvent weld a 3/4" PVC schedule 40 pipe between the parts to the desired length. Its level installation made simple. |
|
|
|

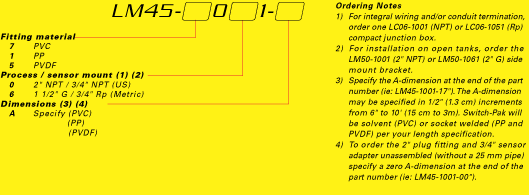

Specifications
|
|
Fitting
|
|
Length:
|
6" to 10' (15cm to 3m)
|
|
Process temp:
|
F: -40° to 176°
C: -40° to 80°
|
|
Pressure:
|
150 psi (10 bar)
|
|
Fitting material:
|
70_1: PVC
10_1: PP
50_1: PVDF
|
|
Process mount:
|
2" NPT (2" G)
|
|
Sensor adaptor:
|
3/4" NPT (3/4" G)
|
|
Side mount
|
|
Bracket material:
|
PP
|
|
Female threads:
|
1001: 2" NPT
1051: 2" G
|
|
Tank insulation:
|
Bolt or plastic weld
|
|
 |
|
