| The general purpose non-intrusive capacitance level switch is a great choice for highly corrosive or ultrapure, aqueous based liquids with non-coating and/or scaling characteristics. Media examples include deionized water and hydrochloric acid. The 1A relay provides a reliable switch interface with remote devices such as a PLC, SCADA or alarm. The sensor is bracket mounted on the exterior wall of non-metallic tanks. |
|
|
|
Non-intrusive level detection through plastic or fiberglass tank walls with a maximum thickness of 1" |
|

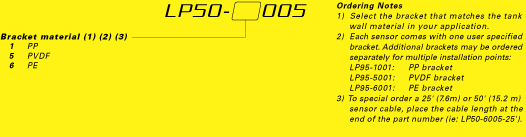

PE, PVC, PP or PVDF mounting bracket designed for adhesive and plastic tack-weld installation |
|
Polysulfone enclosure rated IP65 with 1/2" NPT conduit connector |
|
| Tech Tip |
| With two easy calibration adjustments, the non-intrusive switch set point is customized to your specific tank wall thickness and application media. Its non-intrusive level made simple. |
 |
|
|
|
|
Specifications
|
|
Orientation:
|
Universal
|
|
Tank mat. comp.:
|
Non-metallic
|
|
Repeatability:
|
±0.5 mm in water
|
|
Supply voltage:
|
12-36 VDC
|
|
Contact type:
|
(1) SPST relay
|
|
Contact rating:
|
60 VA
|
|
Process temp:
|
F: -40° to 176°
C: -40° to 80°
|
|
Cable length:
|
10' (3m)
|
|
Enclosure rating:
|
NEMA 4X (IP65)
|
|
Enclosure material:
|
PSO
|
|
Conduit entrance:
|
1/2" NPT
|
|
Process mount:
|
Bracket
|
|
Classification:
|
General purpose
|
|
|
|
