Seametrics

TX 101/201

Seametrics TX101/201 Series Instruction Manual .PDF

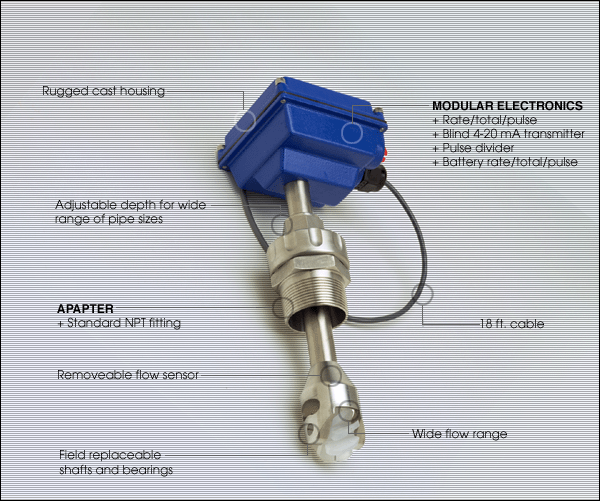

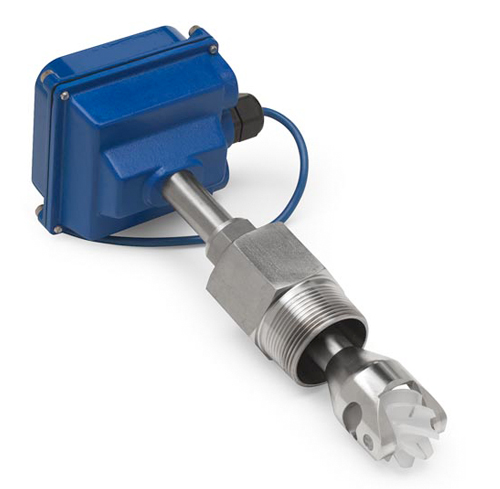

Adjustable turbine flow sensor for pipe sizes 2" to 48"
» Two sizes fit entire pipe range: TX101 to 10", TX201 to 48"
» Turbine rotor to optimize minimum flow limits
» High quality ruby bearings for long life
» One easily-replaced moving part
» Square-wave frequency output can connect directly to PLC's or counter controls
» Uses standard NPT threaded pipe fittings or saddles
» Compatible with all SeaMetrics controls
» Bidirectional indication available as option

Features

Specifications

Sensor

Hall Effect Sensor

12 VDC current sinking pulse

Materials

Sensor Body	Brass or 316 SS
Rotor	Polypro (PVDF opt.)
Shaft	Nickel-bound tungsten carbide (zirconia ceramic opt.)
Bearings	Ruby jewels

Pipe Size

TX101	2" to 10" (50-250mm)
TX201	10" to 48" (250-1200mm)

Fitting Size

1-1/2" NPT

Maximum Pressure	200 PSI (14 bar)
Maximum Temperature	200° F (93° C)

Range

0.2 to 30 FPS (0.006 to 9 M/s)

Accuracy

± 1% FS

Insertion Force

0.44 X pressure in pipe

Power

5 to 24 VCD, 1.5 mA

Cable

#22 AWG 3-con, 18'

Max Cable Run

2,000' (650m)

Flow Range (GPM)

	2"	3"	4"	6"	8"	10"	12"	16"	24"
Min	2	5	8	18	30	50	70	110	250
Max	300	700	1100	2500	4500	7000	10000	16000	35000
