Unitronics Jazz Series Overview

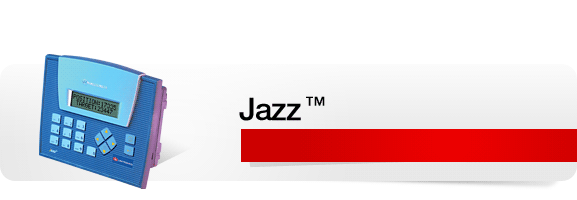

Jazz™ : micro PLC with text-based HMI

Replace that “smart relay” with a real PLC—for the same low price.
Jazz™ is a full-function Programmable Logic Controller with onboard I/Os and a built-in Operator Panel. Jazz™ is specifically designed to control small machines, and to perform simple-to-medium automation tasks. Compact and economical, Jazz™ enables you to use a low-budget unit without compromising on features and technology.

Jazz™ offers the flexibility of Ladder programming (24K Ladder code, virtual), communication options such as GSM/SMS, Remote Access, and MODBUS networking. The Jazz™ HMI application enables you to design up to 60 text screens, using up to 64 HMI variables for the display of time, date, and real-time system data. Jazz™ programming is as easy as it gets—build Ladder Logic control applications using click-and-drop elements…and create your HMI application in the same simple environment.

Our PLC/HMI integrated devices:

* save our customers’ programming time, wiring, and cabinet space.
* cut budget by reducing requirements for additional hardware
* prevent you from wasting time setting up Panel-PLC communication

Specifications

PLC

* Up to 40 onboard I/Os: Digital and Analog inputs, Relay or Transistor outputs
* High-speed inputs (5 kHz)
* RTC, enabling time-and-date controlled operations
* 24K (virtual) Ladder code capacity
* ‘Cloner’ module enables an application, data, and OS to be exactly copied from one Jazz to another
* Functions include: math, store/load, compare, and clock functions, plus immediate read/write to I/Os, Drum, interrupts and loops
* Mounting: Panel or DIN-rail

HMI

* Two 16-character text lines, LCD illuminated screen
* Multilingual display- supports over 15 languages
* Alphanumeric 16-key customizable keypad, for data entry and function initiation
* Up to 60 user-designed screens
* Display conditional text, time, date, bit status, timer & integer values (up to 64 HMI variables per application)
* "List" variables: link up to 150 messages to a single variable, to add 2K's of conditional text. "List" variables allow easy scrolling between recipes/menus via the keypad
* Info mode: view I/O status, integer values, and system data on the LCD display

Communications

* Data Export to/from Excel
* GSM/SMS support
* Remote access utilities
* MODBUS networking
* OPC/DDE server

JZ10-11-R10

* 6 Digital Inputs including 2 inputs which can function as either high-speed counters, or as normal digital inputs
* 4 Relay Outputs
* 2 Lines x 16 characters, STN LCD, LED backlight HMI Displays
* 24 VDC power supply
JZ10-11-R10 Specifications
