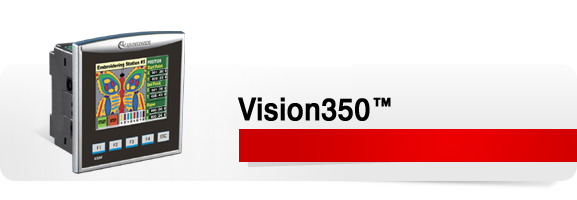

Unitronics Vision350 Series Overview

Color me Beautiful! Vision350™ is the smallest PLC with an embedded COLOR touchpanel

Full Series Comparisson Table PDF

This palm-size PLC offers exceptional capabilities and diverse I/O options. Its 3.5” TFT touchscreen can show over 1000 displays, with 3.5MB for images & fonts. The Vision350™ supports up to 166 I/Os via on-board and I/O expansion modules.

The Vision350™ offers a rich range of embedded features such as multiple auto-tuned PID loops, and internal 120K database for datalogging and recipe programming. Communication options include TCP/IP Ethernet, GSM/SMS, MODBUS and CANopen networking plus remote access for data acquisition and program download.

1MB Ladder code application memory (plus 3MB for images and 512K for fonts) enable the Vision350™ to run complex control and automation tasks.
The 256-color touchscreen HMI enables the display of color-coded operator instructions and red, attention-grabbing alarm screens. It can also display graphs according to historical values—to reflect trends of recorded data. Display options are almost endless with more than 1000 user-designed screens, and up to 250 images per application.

The Vision PLC/Graphic HMI series introduces an unbeatable price-performance ratio, enabling users to enjoy the advanced features of both the operator panel and the PLC, while maintaining low budget, reduced programming time and minimum wiring.

Specifications

PLC

* I/O options: via onboard and expansion modules
* I/O types: Digital (including shaft-encoder inputs & PWM outputs), Analog, & Temperature measurement
* Application Logic: 1MB ; Fonts: 512K ; Images: 3MB
* Scan time: 15µsec per 1K of typical application
* Up to 24 built-in PID loops, including auto-tune
* Recipe programs and datalogging via Data Tables

HMI

* 3.5" 256-Color Touchpanel, QVGA TFT display
* Display ‘touchable’ images, text and graphs according to real-time conditions and historical values
* ‘Touch’ properties can be assigned to all text and graphic on-screen elements
* Data entry/modification via keypad
* Up to 1024 user-designed displays and 250 images per application
* 255 variables per display; link up to 150 images/messages to each variable
* LCD illuminated screen
* Image library containing hundreds of images
* Virtual keyboard
* Info mode: view/modify I/O status, integer values, and system data via the panel

Communications

* Ethernet via TCP/IP port (optional)
* GSM/SMS support
* Remote access for data acquisition and program download
* MODBUS (master/slave)
* CANbus and UniCAN (optional)
* OPC/DDE server
* Adaptable to most TCP/IP/serial protocols

V350-35-R2

* 10 Digital Inputs including 3 shaft-encoder Inputs
* 2 Analog / Digital Inputs
* 6 Relay Outputs
* 1 built-in RS232/RS485 Port
* 1 optional port for serial or Ethernet communication
* 1 optional port for CANbus communication
* 24 VDC power supply

V350-35-R6
* 6 Digital Inputs including 3 shaft-encoder Inputs
* 2 Digital/Analog (current/voltage) Inputs
* 4 Analog (current) Inputs
* 6 Relay Outputs
* 1 built-in RS232/RS485 Port
* 1 optional port for serial or Ethernet communication
* 1 optional port for CANbus communication
* 24 VDC power supply

V350-35-R34
* 20 Digital Inputs including 3 shaft-encoder Inputs
* 2 Analog / Digital Inputs
* 12 Relay Outputs
* 1 built-in RS232/RS485 Port
* 1 optional port for serial or Ethernet communication
* 1 optional port for CANbus communication
* 24 VDC power supply

V350-35-RA22
* 8 Digital Inputs including 1 shaft-encoder Input
* 2 Analog / Digital Inputs
* 2 Thermocouple / PT100 / Digital Inputs
* 8 Relay Outputs
* 2 Analog Outputs
* 1 built-in RS232/RS485 Port
* 1 optional port for serial or Ethernet communication
* 1 optional port for CANbus communication
* 24 VDC power supply

V350-35-T2
* 10 Digital Inputs including 3 shaft-encoder Inputs
* 2 Analog / Digital Inputs
* 12 Transistor Outputs
* 1 built-in RS232/RS485 Port
* 1 optional port for serial or Ethernet communication
* 1 optional port for CANbus communication
* 24 VDC power supply

V350-35-T38
* 20 Digital Inputs including 2 shaft-encoder Inputs
* 2 Analog / Digital Inputs
* 16 Transistor Outputs
* 1 built-in RS232/RS485 Port
* 1 optional port for serial or Ethernet communication
* 1 optional port for CANbus communication
* 24 VDC power supply

V350-35-TA24
* 8 Digital Inputs including 1 shaft-encoder Input
* 2 Analog/Digital Inputs
* 2 Thermocouple / PT100 / Digital Inputs
* 10 Transistor Outputs
* 2 Analog Outputs
* 1 built-in RS232/RS485 Port
* 1 optional port for serial or Ethernet communication
* 1 optional port for CANbus communication
* 24 VDC power supply
