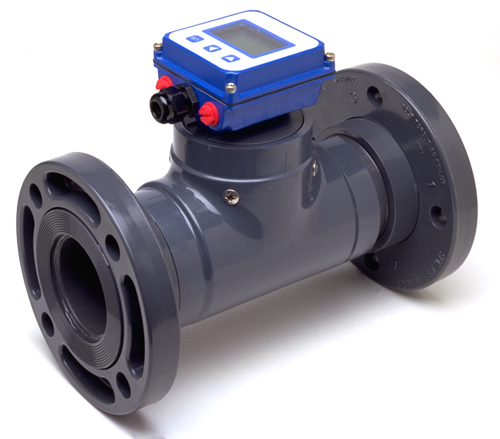

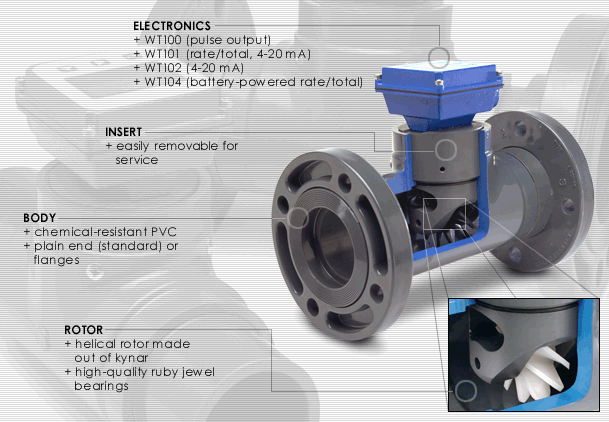

PVC-body turbine flow meter
» In-line, individually-calibrated turbine meter maximizes accuracy
» Turbine rotor is the only moving part, optimizing low-flow performance
» Solid-state pickup
» Electronic register can be meter-mounted or remote
» Available with blind pulse or 4-20 mA output
» Materials are chemical-resistant
» Can be ordered with stub ends (standard) or flanges (optional)

Features

Specifications

Materials

Meter Body	PVC Schedule 80 fittings
Turbine Insert	PVC (Polypro in 2" size)
Turbine Rotor	Kynar (PVDF)
Shafts	Zirconia ceramic
Bearings	Sapphire journal, ruby endstone

Maximum Pressure

150 psi @ 75° F
(10 bar @ 24° C) (see chart)

Maximum Temperature

120° F (50° C) (see chart)

Accuracy

± 1% of full scale

Flow Range (Gallons Per Minute)

	2"	3"	4"	6"
Minimum	2	3	6	12
Maximum	150	400	600	1200

Flow Range (Liters Per Minute)

	2"	3"	4"	6"
Minimum	8	11	23	46
Maximum	568	1514	2271	4542

ELECTRONIC OPTIONS:

WT100 (Pulse Output Only)

Power	6-24 Vdc
Pulse Output	0-75 pulse/second current sinking

WT101 (Powered Rate/Totalizer)

Power	12-32 Vdc (for 4 mA DC min); 24-32 Vdc (for accuracy of 4-20 mA loop)
Rate	6-digit autorange
Total	8-digit
Memory	Non-volatile (no battery needed)
Pulse Output	0.1 second open collector (scaled); 0-75 pulse/second passthrough (unscaled); High or low alarm
Analog Output	4-20 mA loop (24-32 Vdc required)

WT102 (Blind 4-20 Transmitter)

Power	24-36 Vdc (isolated)
Analog Output	4-20 mA loop
Response Time	2-60 seconds, 90% of full scale (depends on input averaging)

WT104 (Battery-powered Rate/Totalizer)

Power	3.6 Vdc Lithium battery; replaceable, 3-5 year life
Rate	6-digit autorange
Total	8-digit
Pulse Output	0.1 second open collector (scaled); 0-75 pulse/second passthrough (unscaled); High or low alarm
