DataSwitch™ Remote Relay Controller

Data Switch Remote Relay Controller .PDF
Data Switch Remote Relay Controller Data Sheet .PDF
Data Switch Remote Relay Controller Manual .PDF

Flowline DataSwitch Remote Relay Controller
Application
The general purpose controller provides single tank level indication with 2 relays, 1-3 set points and an isolated 4-20 mA repeater. Relay 1 is configurable on a single set point. Relay 2 can be configured on a single set point or latched on two set points for automatic fill or empty control. A LED bar graph indicates the level as a percentage of measured span.
Features
3.5 digit LED display indicates level in custom engineering units
EasyCal push button calibration for span, display and relay set points
Fail-safe design with security lock out calibration for process safety
PP 35 mm DIN enclosure with removable terminal strips
Specifications
Display type:
LED, 3.5-digit
Display units:
Engineering
Display output:
0-999
Input channel:
(1) 4-20 mA
Supply voltage:
120/240 VAC, 50-60 Hz.
Memory:
Non-volatile
Sensor supply:
28 VDC @ 5 watts
Repeater output:
4-20 mA, 12-36 VDC
Contact type:
(2) SPDT relays (1 latching)
Contact rating:
250 VAC @ 10A
Contact output:
Selectable NO/NC
Operating temp:
F: -40° to 158°
C: -40° to 70°
Enclosure material:
PP
Enclosure type:
35 mm type
Classification:
General purpose

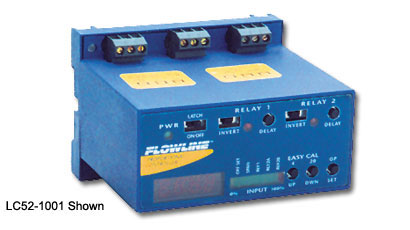

Remote Relay Controller LM94-1001
Part Number
  • LC52-1001
Updated on April 3rd 2019
