Flowline Level Transmitters

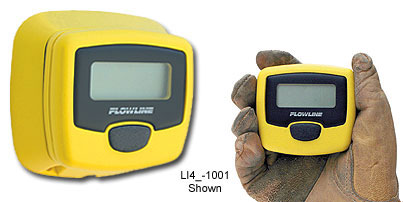

MicroPoint Multi-Channel Indicator with Alarms


Flowline Level Transmitters - MicroPoint Multi-Channel Indicator with Alarms
Application
Factory calibrated, the general purpose indicator reads 0-100% of span with two or four sensor input channels. A single push button allows users to scroll through their active channels. With the optional MicroCal PC calibration kit, users can customize engineering units, configure FET alarm set points, and/or linearize the volumetric measurement of odd shaped tanks. Select the 2 channel for loop insertion with PLC's and the 4 channel for stand alone indication.
Features
Compatible with two-wire level transmitter, switch and leak detection sensors
Alarms can be configured for high level, low level, out-of-bounds level or leak
Compact NEMA 4X enclosure supports panel and wall mount installations
Adjustable LED backlight for use at night or in dimly lit applications
Calibration
Your indicator may be configured in less than a minute using the MicroCal PC calibration kit. User configuration files are retained for indicator cloning and record keeping. It's level indication made simple!
Specifications
Display type :
LCD, 5-digit
Display units:
Factory cal: % of span
PC cal: engineering*
Display output:
Transmitter: 0-99999
Switch: Good / Alarm*
Display backlight:
LED bar (adjustable)
Linearization:*
2-16 point function
Input channels:
LI42: (2) 4-20mA
LI44: (4) 4-20mA
Supply voltage:
12-24 VDC
PC-cal. interface:*
USB® adaptor w/cable
PC-cal. software:*
MicroCal (Windows®)
Memory:
Non-volatile
Alarm type:*
LI42: (2) FET switches
with opt. audible chirp
LI44: (1) FET switch with opt. audible chirp
Alarm set points:*
1 point: alarm
2 points: out of bounds
Switch rating:
1A @ 24 VDC
Switch output:*
Normally open
Operating temp.:
F: -4° to 140°
C:-20° to 60°
Cable length:
10' (3m)
Enclosure rating:
NEMA 4X (IP65)
Enclosure mat'l.:
PC/ABS FR
Classification:
General purpose
* Requires the LI96-1001 MicroCal calibration kit

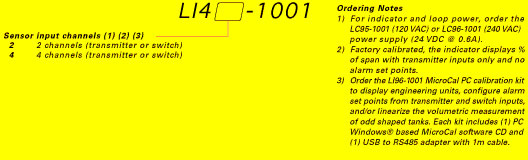

Part Numbers
  • LI24-1001
  • LI44-1001
