Flowline Flow Switches

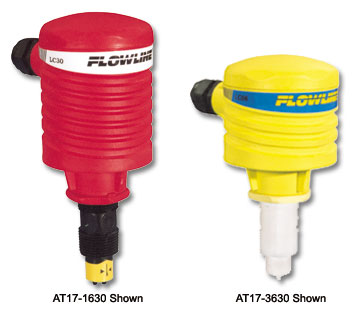

Switch-Pro™ with Compact Junction Box

Application
This general purpose liquid or gas switch package provides a low flow detection solution for pump or process protection with a 1A relay interface for remote devices such as a PLC, SCADA or alarm. The short sensor is intended for use in pipe or ducting from 1/2" to 11/2"; the long sensor is applied in 2" and up. The product is broadly selected for low or no-flow applications. Specify the appropriate sensor technology, length and material.
Features
1A relay selectable NO or NC via power supply wiring polarity
PP enclosure rated NEMA 4X with 300° conduit swivel base
PP or PVDF wetted material for challenging corrosive fluids
Compatible with Flowline controller, alarm and fitting accessories
Tech Tip
The NEMA 4X enclosure is made of UL approved fire retardant PP and features a 300° swivel base for easy conduit alignment. The power and switch terminals are prewired to the terminal strip.
Specifications
Set point range:
FT10: 0.04 to 3 fps (0.012 to 0.91 mps)
GT10: 1 to 90 fps (0.3 to 27 mps)
Repeatability:
±0.5% of set point
Supply voltage:
12-36 VDC
Contact type:
(1) SPDT relay
Contact rating:
60 VA
Process temp:
F: 32° to 140°
C: 0° to 60°
Pressure:
150 psi (10 bar)
Wetted material:
PP-Ryton®/PVDF
Conduit entrance:
1/2" NPT
Enclosure rating:
NEMA 4X (IP65)
Process mount:
3/4" NPT (3/4" G)
Classification:
General purpose

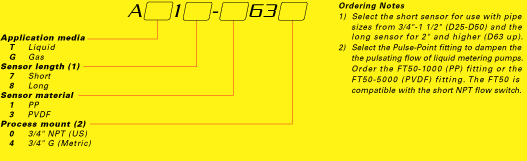

Order
