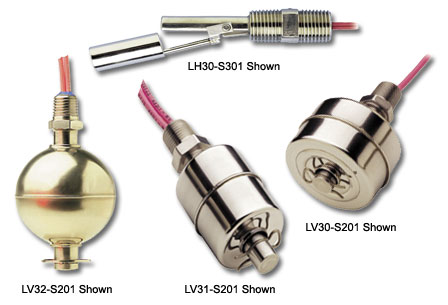

| Offered in both vertical and horizontal float configurations, the general purpose high-temp float level switches are an ideal choice for relatively clean water, diluted chemical or petroleum based liquids with non-coating and/or scaling characteristics. Media examples include hot deionized water and cooking oil. The dry contact closure provides a reliable switch interface with remote devices such as a PLC, SCADA or alarm. |
|
|
| 316 SS float and stem for high temp and pressure applications |
| 20 VA dry contact with selectable NO or NC state via float orientation |

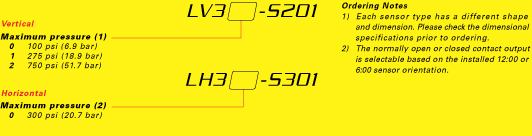

| Offered in four configurations with pressures up to 750 psi |
|
|
|
Specifications
|
|
Orientation:
|
LV3_: ±20° vertical
LH30: ±20° horizontal
|
|
Repeatability:
|
± 1 mm in water
|
|
Contact type:
|
(1) SPDT reed
|
|
Contact rating:
|
20 VA
|
|
Process temp:
|
F: -40° to 300°
C: -40° to 148.9°
|
|
Pressure:
|
LV30: 100 psi (6.9 bar)
LV31: 275 psi (18.9 bar)
LV32: 750 psi (51.7 bar)
LH30: 300 psi (20.7 bar)
|
|
Cable length:
|
2' (60 cm)
|
|
Sensor rating:
|
NEMA 6 (IP68)
|
|
Process mount:
|
LV30/31: 1/8" NPT
LV32: 1/4" NPT
LH30: 1/2" NPT
|
|
Sensor material:
|
316 ss
|
|
Classification:
|
General purpose
|
|
|
|
|
