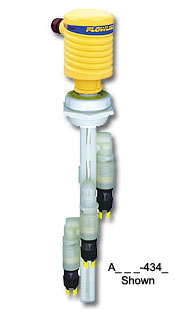

| Offered in CSA approved intrinsically safe or general purpose configurations, this switch package provides up to four adjustable level switch points with a 1A relay or dry contact closure interface for remote devices such as a PLC, SCADA or alarm. The product is typically selected for atmospheric day tank, process vessel and waste sump applications. Specify the appropriate sensor technology and assembly dimensions |
|
 |
|
|
Corrosive multi-point level detection with contacts for PLC or control input |
|
Offered in 3 sensing technologies for broad application coverage |
|
Rugged PP construction for use in challenging corrosive environments |
|
Adjustable level switches make field adjustment fast and simple |
|
PP junction box with swivel base |
|
| Tech Tip |

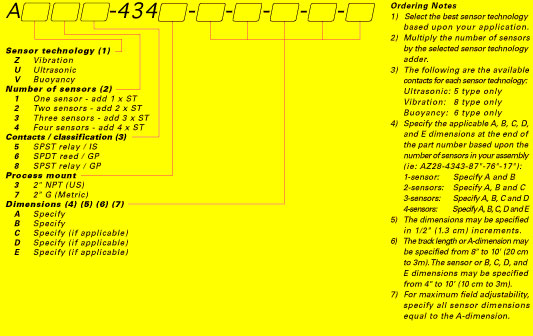

Sensor Technology |
The compact junction box is constructed of UL approved fire retardant PP and comes pre-wired with a 12-pole terminal strip. Its level made simple.
|
Ultrasonic
Broadly applied in chemical, solvent, hydrocarbon and light weight oil media
Vibration
Typically applied in wastewater media with light coating and/or foaming characteristics
Buoyancy
Best applied in clean water or water-like chemical media that is non-coating or scaling
|
|
|
|
Specifications
|
|
Length:
|
8" to 10' (20cm to 3m)
|
|
Switch points:
|
1 to 4 (field adjustable)
|
|
Process temp:
|
F: -40° to 176°
C: -40° to 80°
|
|
Pressure:
|
Atmospheric
|
|
Wetted material:
|
PP (20% glass filled)
|
|
Conduit entrance:
|
Single, 1/2" NPT
|
|
Enclosure rating:
|
|
|
Process mount:
|
2" NPT (2" G)
|
|
|
|
|
Supply voltage:
|
12-36 VDC
|
|
Contact type:
|
(1) SPST relay
|
|
Contact rating:
|
GP: 60 VA
IS: 32 VDC @ 0.5A
|
|
Classification:
|
Intrinsically safe
|
|
|
|
|
Supply voltage:
|
12-30 VDC
|
|
Contact type:
|
(1) SPST relay
|
|
Contact rating:
|
60 VA
|
|
Classification:
|
General purpose
|
|
|
|
|
Contact type:
|
(1) SPDT reed
|
|
Contact rating:
|
15 VA
|
|
Classification:
|
General purpose
|
|
|
|
|
