| Available in two classifications; CSA approved general purpose and isolation with built-in intrinsic safety barriers for use with associated apparatus. Each classification is offered in three versions with 1 or 2 relays and 1-3 sensor inputs. The LC40/90 provides a high or low level switch with a single sensor input. The LC41/91 provides latched automatic fill or empty control with two sensor inputs. The LC42/92 provides latched automatic fill or empty control and an independent high or low level switch with three sensor inputs. |
|
|
Optional built-in intrinsic safety barriers for hazardous level applications |
|
Fail-safe remote relay control of pumps and valves with 0-60 second time delay |
|
Easy setup with LED indicators for sensor, power and relay status |
|
35 mm DIN rail mount PP enclosure with removable terminal strips |
|
| Tech Tip |
| Package the isolation controller with the CSA approved intrinsically safe ultrasonic level switch. |
 |
|
|
|
|
Specifications |
|
Supply voltage: |
120/240 VAC, 50-60 Hz. |
|
Sensor inputs: |
LC40/90: (1) level switch
LC41/91: (2) level swiitches
LC42/92: (3) level switches |
|
Contact type: |
LC40/90: (1) SPDT relay
LC41/91: (1) SPDT relay, latching
LC42/92: (2) SPDT relays, (one latching) |
|
Contact rating: |
250 VAC @ 10A |
|
Contact delay: |
0-60 seconds |
|
LED indication: |
Sensor, power & relay status |
|
Electronics temp: |
F: -40° to 158°
C: -40° to 70° |
|
Enclosure material: |
PP (UL94VO) |
|

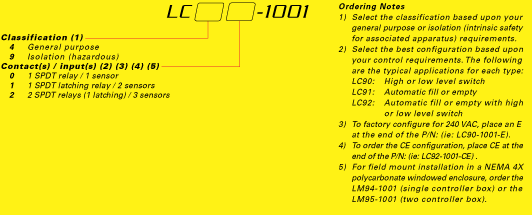

Classification: |
LC4_: General purpose
LC_9: Associated apparatus |
|
 |
|
